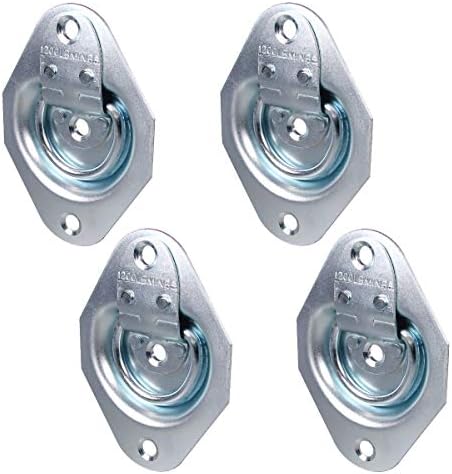

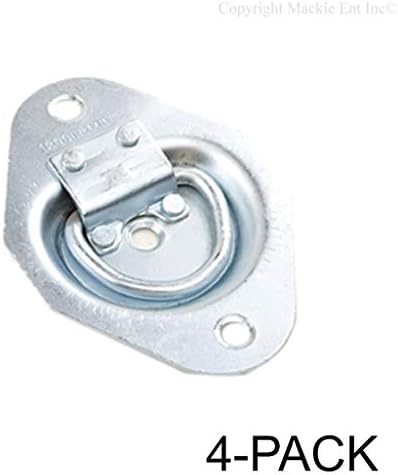

Recessed D-Ring Tiedowns 1,200 lb. Capacity Tie Down - 4

About this item

• This tie down attachment has a 1,200 lb. capacity vertical pull weight rating with a 400 lb WLL* - product details below. Use two d-rings to obtain a flush, trip free surface to secure cargo weighing less than 800 lbs.
• Tiedown pans are designed to mount flush to mounting surface making them ideal for trailers along with other applications. To install this recessed attachment it requires routing, or cutting a hole in the floor. The closer you install to a floor beam the stronger the d-ring.
• Zinc plated tie offs are perfect for those looking for extra corrosion resistance without the expense of stainless steel.
• To obtain maximum strength it is recommended to install these d-rings with bolts, lock nuts, and fender washers (wide diameter).
• These recessed tie down rings pivot up when in use and pivot down into pan when not in use. The 1/4" diameter ring measures 2-1/8" wide X 1-3/4" long. 1/4" tapered securing holes are on a 4" center. 1/4" drainage hole.
