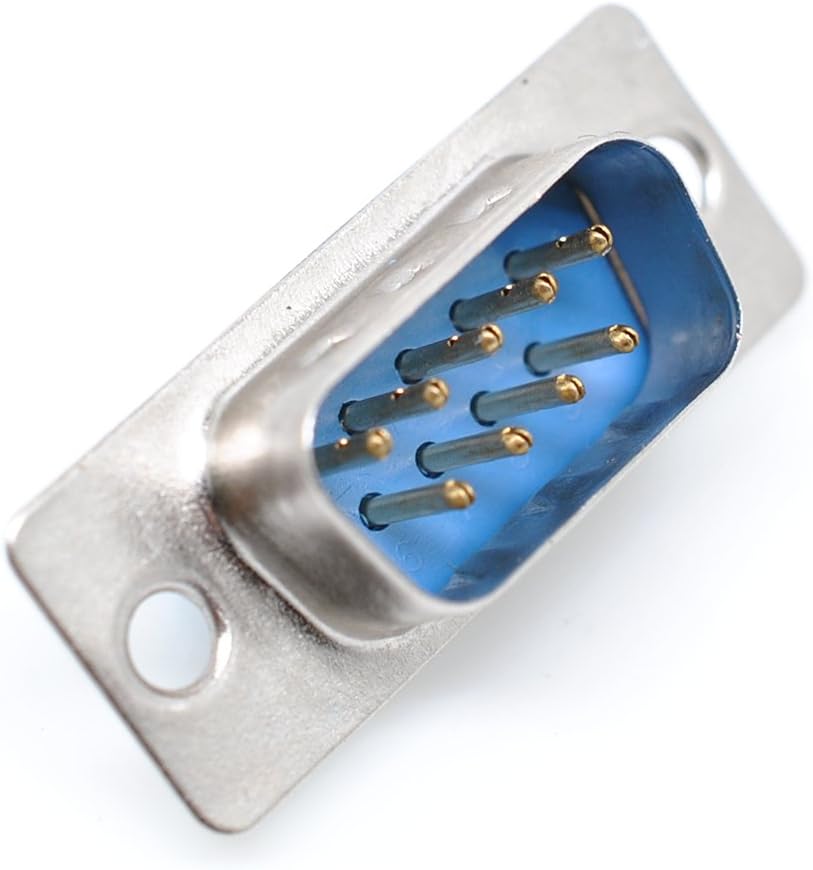

DB9 Male Female 9 Pin Solder Type D-Sub Connector 20 Pack

$9.99

★ 4.640 reviews

Product Information

ASINB075PBL2V1

CategoryOther

About this item

Durable Nickel-Plated Housing with Pure Copper Joints for Stable Transmission and Reliable Performance. Solder Cup Design for Extra Strength and Tension Resistance.
Versatile DB9 Connector for Connecting Computers to Various Serial Devices, Including Automatic Control Systems, Industrial Equipment, Cash Registers, Modems, Set-Top Boxes, and More.
Compact and Lightweight for Easy Custom Cable Creation with DB9 Connectors.
Mount Hole Distance: 25mm (1 inch).
Compatible with Maximum 20 AWG Wire Size.

Product Description

Easy Solder Type Connection: Simple and reliable soldering process for permanent, durable connections between cables and connectors. Specifications: Insulator: PBT Contact Material: Copper Shell: Nickel-Plated Type: Solder Type Pin Count: 9 Rated Voltage: 24V Rated Current: 2A Contact Resistance: 30mΩ Insulation Resistance: 100MΩ at 500V DC (Min) Withstand Voltage: 1000V AC for 1 minute (Min) Operating Temperature: -67°F to 221°F / -55°C to 105°C Package Includes: 20Pcs DB9 Solder Type Connectors
