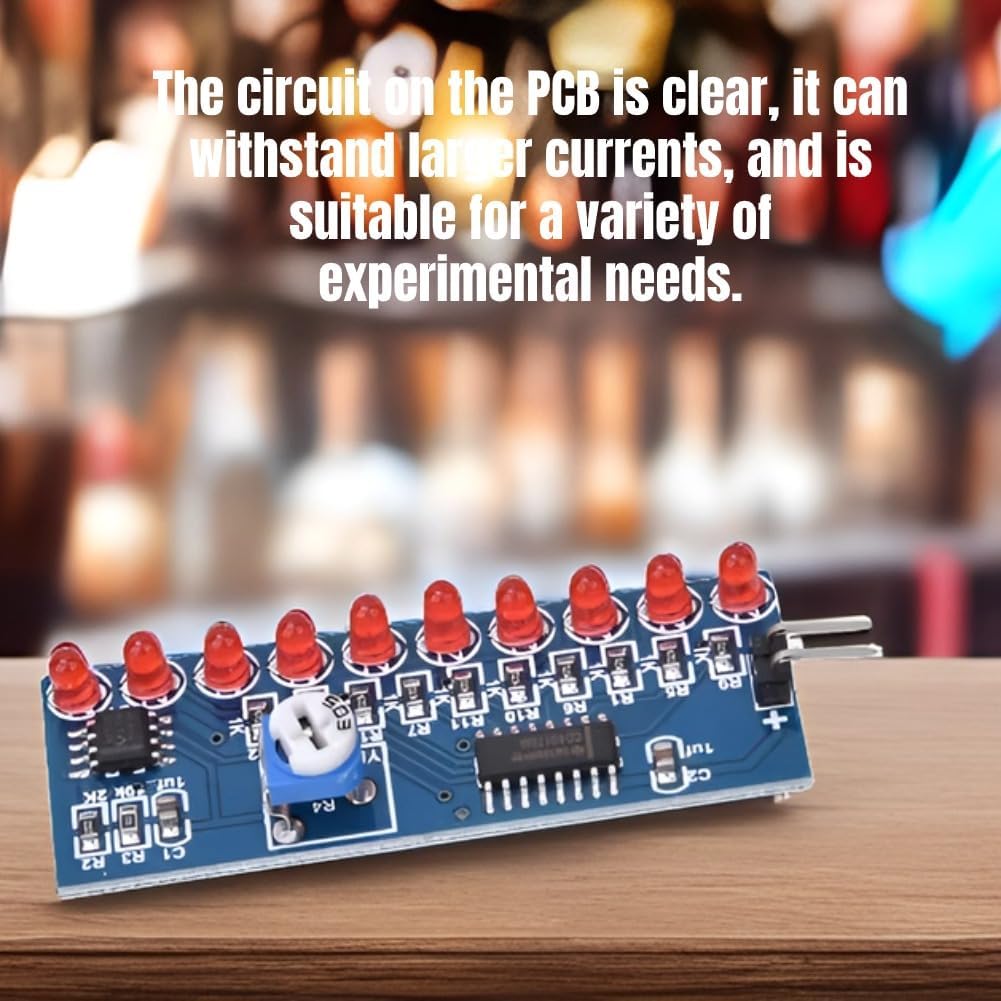

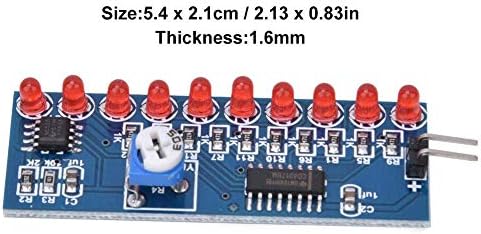

2pcs Water Flowing Light Module NE555+CD4017 LED Chaser LED Running Light

About this item

• 【10 LED】Ten LEDs are connected to the 10 outputs of the CD4017. When the 10 outputs of the CD4017 alternately generate a high level under the action of the clock , D1--D10 are sequentially illuminated to form a water-light effect.
• 【working principle】The charging time is: 0.695 (R2+R3+R4)C1, the discharge time is: 0.695 (R4+R3)C1, the R4 can be adjusted to control the output frequency of the oscillator, and the clock oscillation of NE555 is continuously added to the 14th pin of CD4017.
• 【speed adjustable】Adjust the R4 to adjust the speed of the LED light.
• 【】Mainly composed of clock generation circuit and decimal counter circuitmade of electronic component, has a long service life.
• 【NE555 core】The self-excited multivibrator with NE555 as the core, the power supply charges capacitor C1 through R2, R3, R4. When C1 starts charging, the 2 pin of NE555 is still at low level, so the output pin 3 is high level. When the power supply is charged to the 2/3 power supply voltage through R2, R3, and R4, the output pin 3 level changes from high to low, and the NE555 internal discharge tube is turned on. The capacitor C1 is discharged through the 7-pin of R4, R3, and NE555.
