Mcbazel ODV-GBS-C RGBS/SCART/YPbPr/VGA to HDMI/VGA Scan Converter for Retro Gaming Console with US Plug - NO AV/Composite/RCA | VGA Max 60Hz

About this item

• PLEASE READ BEFORE PURCHASING — Supported Input Interfaces: This converter accepts ONLY these 4 input types: RGBS/SCART
• YPbPr Component
• VGA (≤60Hz)
• RGBHV. NOT SUPPORTED: AV Composite / RCA / S-Video / HDMI Input. VGA input does NOT support refresh rates above 60Hz (e.g., 70Hz DOS/PC BIOS modes are not compatible)
• Designed for classic retro gaming consoles. Converts YPbPr component and RGB signals to HDMI and VGA output for modern TVs and displays. Addresses common limitations found in converters such as OSSC. IMPORTANT: N64 / GameCube: This product alone does NOT support these consoles. You must also purchase the Mcbazel ODV-II Converter (ASIN: B0B2WFTDGF).
• Lag-Free Signal Processing & Supported Resolutions:Supports 240p, 480i, 480p input signal processing with no input lagDynamic de-interlacing for 480i → progressive output.Scanline effect: creates authentic CRT scanline appearance (configuration required — see user manual)Can output 480p/480i signals scaled to 240p resolution.15kHz output via VGA is supported but must be manually enabled in the settings menu — NOT active by default
• Supported VGA output resolutions include: 640x480, 800x600, 1024x768, 1280x1024 and more (see user manual for full list). VGA input: supports standard resolutions at 60Hz or below. Non-standard BIOS modes and 70Hz+ refresh rates are NOT supported. Does NOT support AV Composite, RCA, or S-Video input.
• Dedicated Audio I/O & RGB Color Calibration Knobs:Separate 3.5mm audio input and output — connect to earphones, speakers, or audio devices.Three independent R/G/B adjustment knobs for fine-tuning red, green, and blue color output

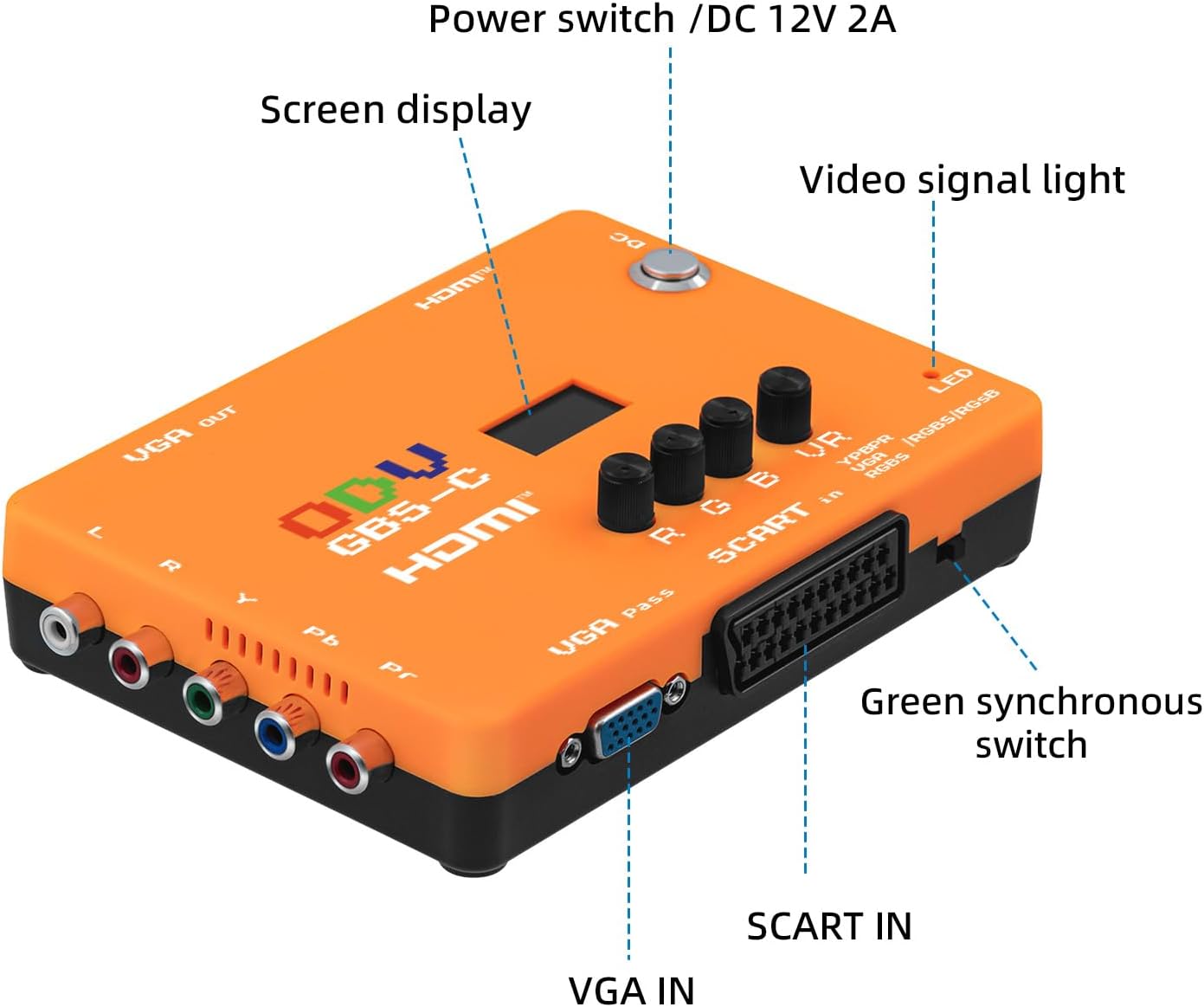

• IMPORTANT — RGB Knob Compatibility:The R/G/B knobs are ONLY active when using RGBS or RGBHV input signals.If you are using YPbPr (Component) input, the RGB knobs will have NO effect — this is normal and expected behavior, not a defect.3-POSITION SYNC SWITCH - READ THIS FIRST: A small switch sits beside the SCART port and MUST match your signal type. LEFT = VGA input. MIDDLE = SCART / RGBS (use this if your SCART picture is black, unstable or flickering). RIGHT = RGsB Sync-on-Green (RGBS 480p only). Most "no picture" and "no color" issues are solved by moving this switch, NOT by changing menu settings.
• LED Display, WiFi Control & Firmware:LED display with front-panel control buttons for on-device settings.WiFi control: configure wirelessly from PC or smartphone.Powered by DC 12V / 1A adapter (US plug included)Firmware upgradable via USB to PC (see user manual for firmware update steps)
• Green Synchronous Switch — RGsB Signal Users Only.This device features a green synchronous switch designed specifically for RGsB signal in 480P format. IMPORTANT:Enable this switch ONLY when your input source outputs RGsB 480P signal For ALL other input types (RGBS/SCART, YPbPr, VGA, RGBHV standard), this switch MUST remain OFF Enabling this switch with non-RGsB sources will cause the signal to be unrecognized — you will see no image If you suddenly lose image after touching a switch on the device, check the green sync switch and turn it OFF.
• Consoles directly compatible (no ODV-II needed): PlayStation 1 / 2 / 3
