Handheld Pulse Spot Welder, Portable Small Pulse Spot Welding Machine, Gold Silver Jewelry Processing Touch Welding Machine, 500W 80A,110V (110V)

$1,925.67

Product Information

ASINB0B7S9PQRH

CategoryTools & Home Improvement

Merchantbaixiangxianyaqianshangmaoyouxiangongsi

AvailabilityIn Stock

About this item

☆ Spot welding machine can be used for platinum, gold, K gold, Silver, Steel welding, the ring mouth, melon buckle. Fine wire precision welding, direct welding without welding powder.
☆ The welding of the workpiece smooth, solid, fast, high efficiency.
☆ The use of plasma high-frequency discharge principle, in the metal welding port instantly forming molten pool.
☆ Adjust the output power according to the wire size.
☆ Service guarantee: If you have any questions, please feel free to contact us, we will serve you wholeheartedly and provide satisfactory solutions.

Product Description

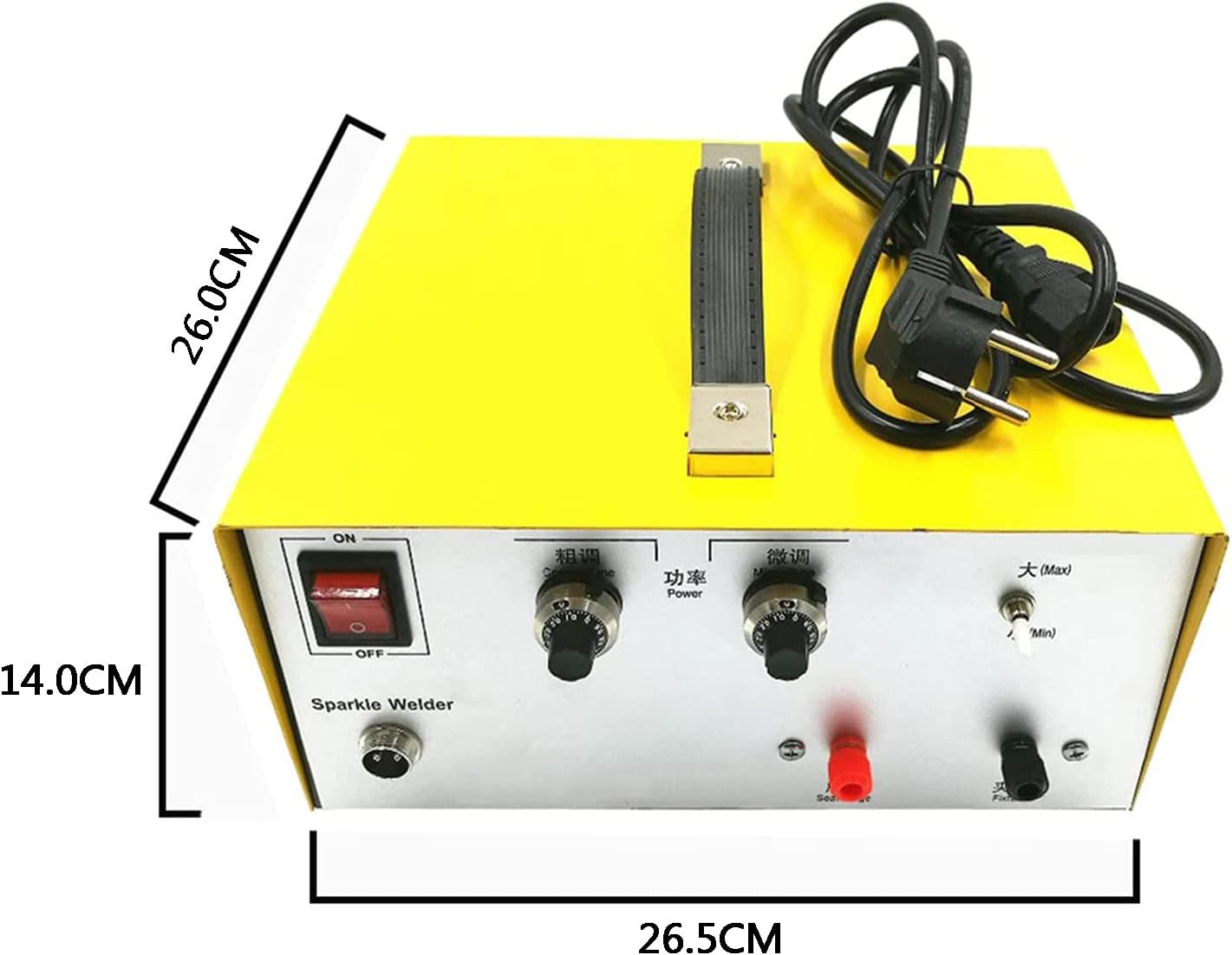

Specifcation: Product name: 80A adjustable pulse spot welding machine (butt welding machine) Power supply: AC 220V/110V Power: 500W Size: 26.5×26.0×14.0 cm Weight: 6.5 kg Standard accessories: power cord, foot switch, work clamp, tungsten needle holder, tungsten needle. Application scope: all precious metals, all gold materials, such as gold, silver, platinum, palladium, etc. Installation: 1. Electrode clamping output negative electrode, the electrode seat output positive pole. 2. Tungsten needle can be sharpened in the grinding machine, the use of cutting-edge discharge principle. 3. Tungsten needle diameter 1.5 mm. Steps: 1. Turn on the power switch. 2. Adjust the power knob, divided into coarse and fine. According to the work requirements can be adjusted scale value 3. The workpiece is aligned with the tweezers. The workpiece interface is aligned with the tungsten needle (the optimum distance is 5 mm). 4. With the foot pedal switch (remove the foot). Spot welding is completed. Package Included: 1 × 80A Pulse Spot Welding Machine
