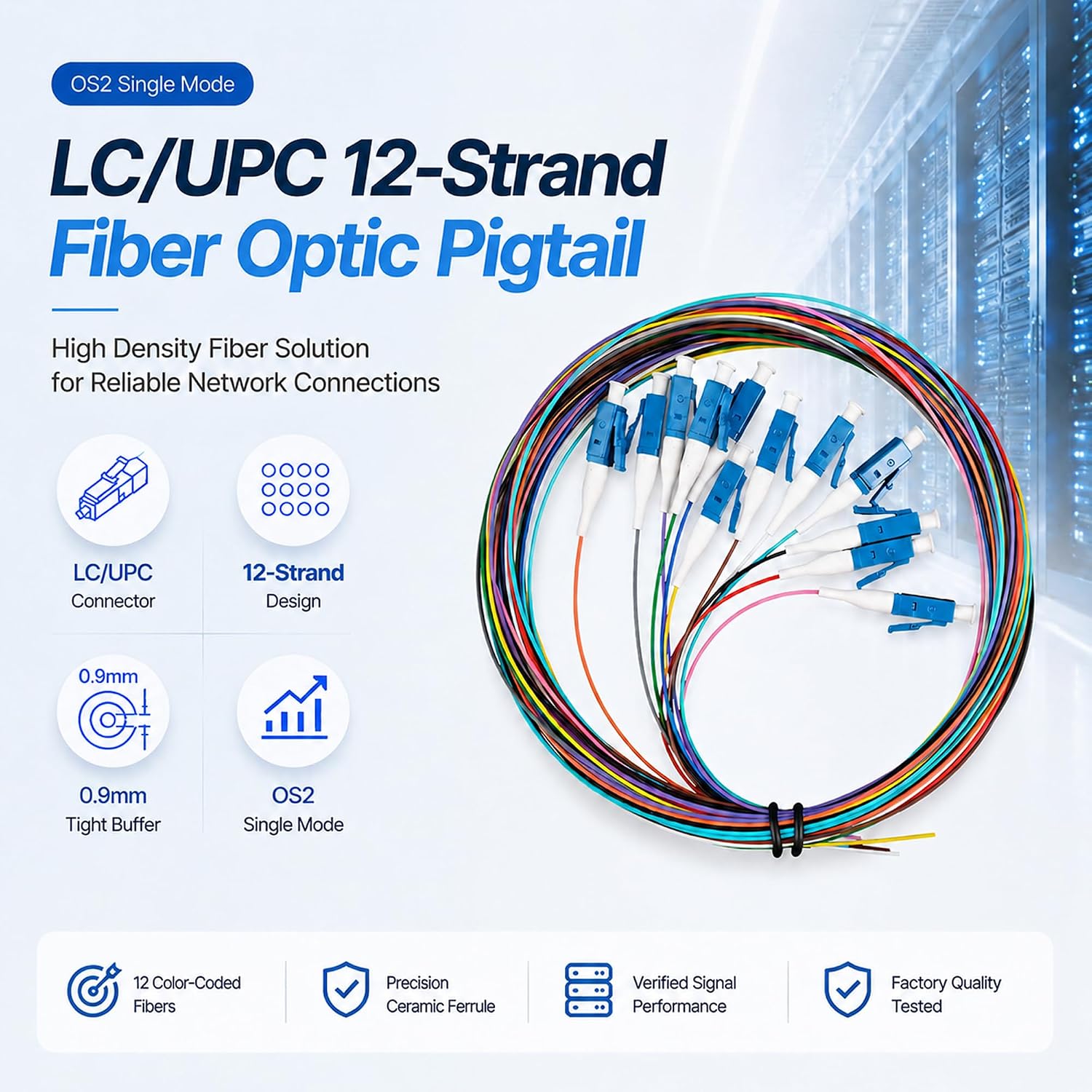

4 Sets 12-Strand LC/UPC Fiber Optic Pigtail, OS2 Single Mode 9/125μm 1.5M, Bundled Yellow PVC Jacket, TIA-598 Color-Coded 0.9mm Tight Buffer, Imported Ceramic Ferrule, for ODF FTTH Data Center CATV

About this item

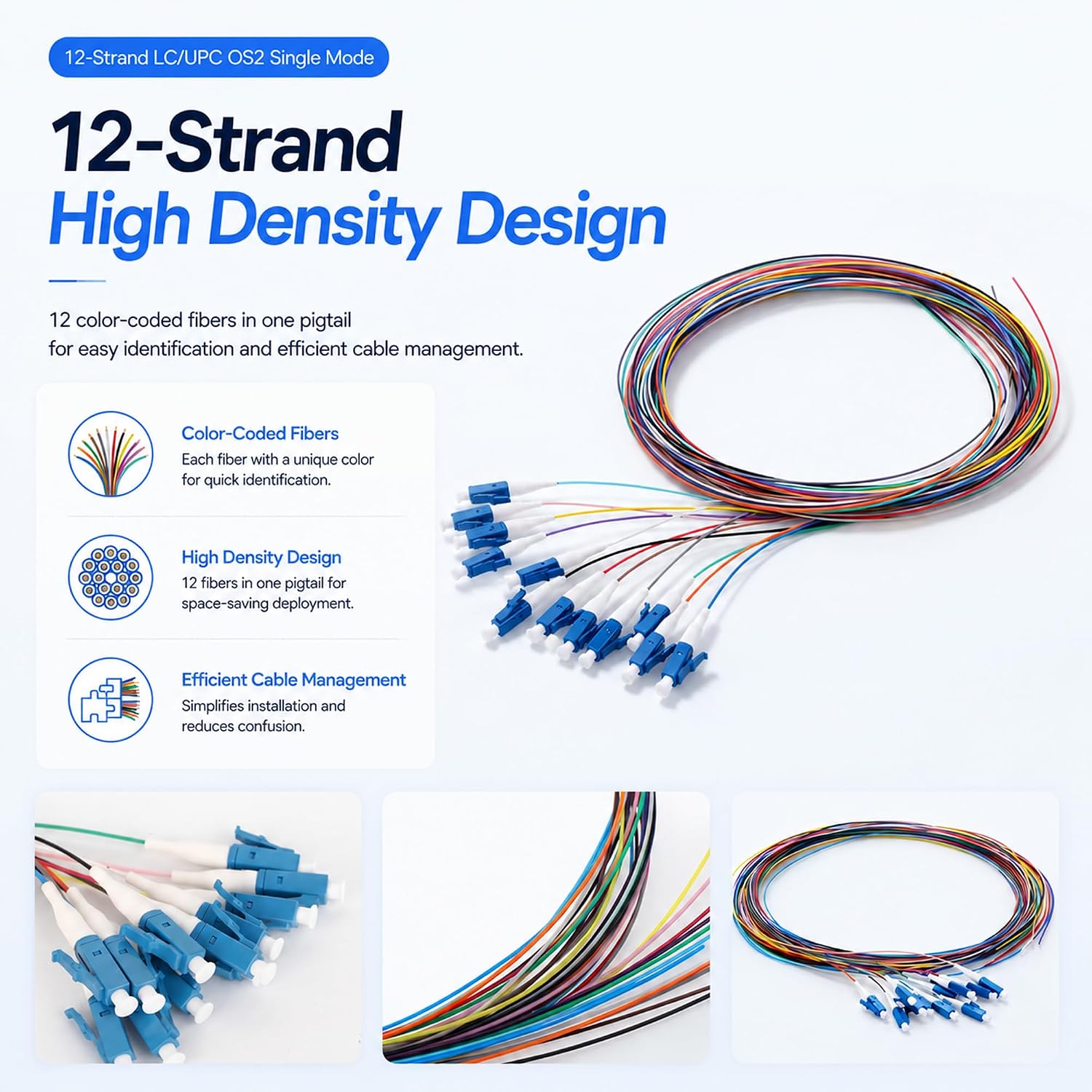

• 【4-SET VALUE PACK — 48 STRANDS TOTAL FOR HIGH-DENSITY INSTALLATIONS】Includes 4 bundles of 12-strand LC/UPC fiber optic pigtails, totaling 48 individually color-coded strands — ideal for high-density ODF patch panel terminations, data center buildouts, and bulk fiber splicing projects. Each strand follows TIA-598-A standard color coding for fast, error-free fiber identification during fusion splicing and termination.

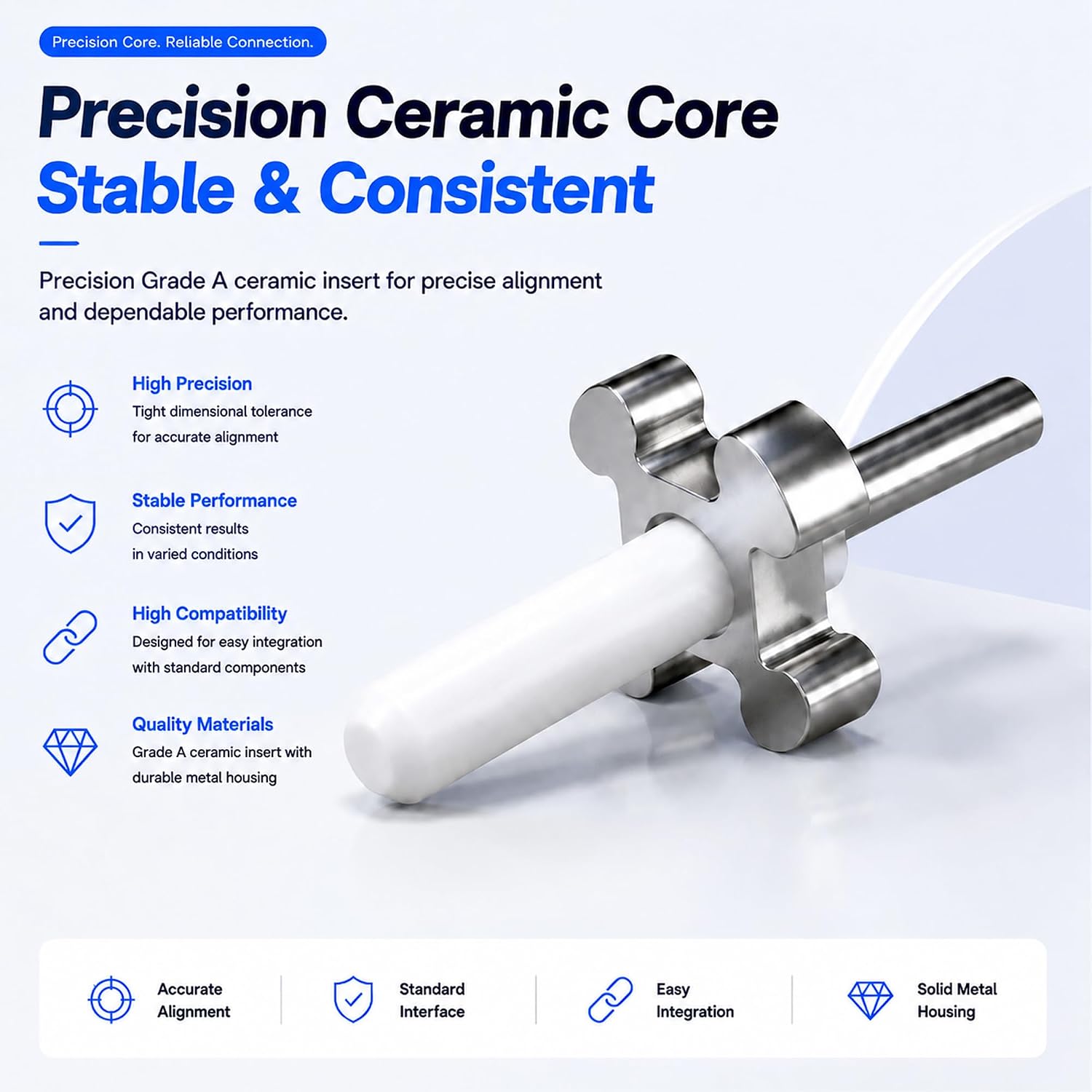

• 【IMPORTED CERAMIC FERRULE — INSERTION LOSS 0.3dB OR LESS, RETURN LOSS 50dB OR ABOVE】Each connector is fitted with an imported ceramic ferrule for superior coaxiality and dimensional accuracy. Insertion loss 0.3dB or less, return loss 50dB or above, and interchangeability loss 0.2dB or less ensure stable, consistent signal transmission across all 48 strands. Rated for over 1,000 mating cycles per connector.
• 【BUNDLED DESIGN WITH DURABLE YELLOW PVC JACKET】Each bundle features a standard OS2 yellow PVC outer jacket, providing mechanical protection for the 12 internal 0.9mm tight-buffer fiber strands. The bundled structure allows each strand to be routed independently into ODF patch panels and distribution boxes — offering better cable management and durability compared to unprotected bare fiber pigtails.
• 【WIDE TEMPERATURE RANGE & MECHANICAL DURABILITY】Each bundle is designed for stable indoor operation from -40°C to 80°C (-40°F to 176°F), suitable for installations with significant temperature variation. Minimum bending radius 30mm; tensile strength rated at 100N. Lightweight at approximately 19g per bundle for easy handling during high-density cable management.
• 【FACTORY INSPECTION — 100% TESTED】Every pigtail undergoes end-face verification and optical loss testing. Individually packaged in a dust-resistant sealed bag to maintain connector integrity and avoid physical damage during transit.
