4.3-10 Mini DIN Female to N Female Adapter, 50 Ohm, 1 Piece
$12.99
Product Information
ASINB0BY1VTCD6
CategoryHome & Kitchen
AvailabilityIn Stock
MerchantWhisary
About this item
- 1.connector : one size is MiniDin 4.3-10 female, another side is N female connector
- 2.Impedance :50 Ohm, Frequency :DC-6GHz VSWR ≤1.10 Insertion loss≤0.11dB PIM3 ≤-163dBc
- 3.Material :Body Brass with Tri-Alloy plated, insulator :PTFE(Teflon)
- 4.N female to 4.3/10 Mini DIN female adapter, used in RF Applications,Antennas,Coaxial cable,Wireless LAN Devices and so on.
- 5. Package：1 piece adaptor 4.3-10 MiniDIN female to N female jack
Product Description
Whisary 4.3/10 MiniDIN Female to N Female Adaptor 1.Material : Body ：Brass Tri-Alloy plated Insulator: PTFE (teflon) Center conductor: Phosphor bronze Ag plated 2.Performance index: Characteristic Impedance : 50 ohm Frequency Range :DC-6GHz VSWR ≤1.10 Insertion loss≤0.11dB PIM3 ≤-163dBc Dielectric Withstanding Voltage ≥2500V RMS,50Hz,at sea level Dielectric Resistance ≥5000MΩ Contact Resistance : Outer contact≤1mΩ;Center Contact≤1.0mΩ
Similar Items
4.3-10 Mini DIN Male to N Female Adapter, 50 Ohm, 1 Piece$12.49
FARERY Travel Size Mini Curling Iron, 1/2 Inch, 100-240V Dual Voltage, Blue$24.99

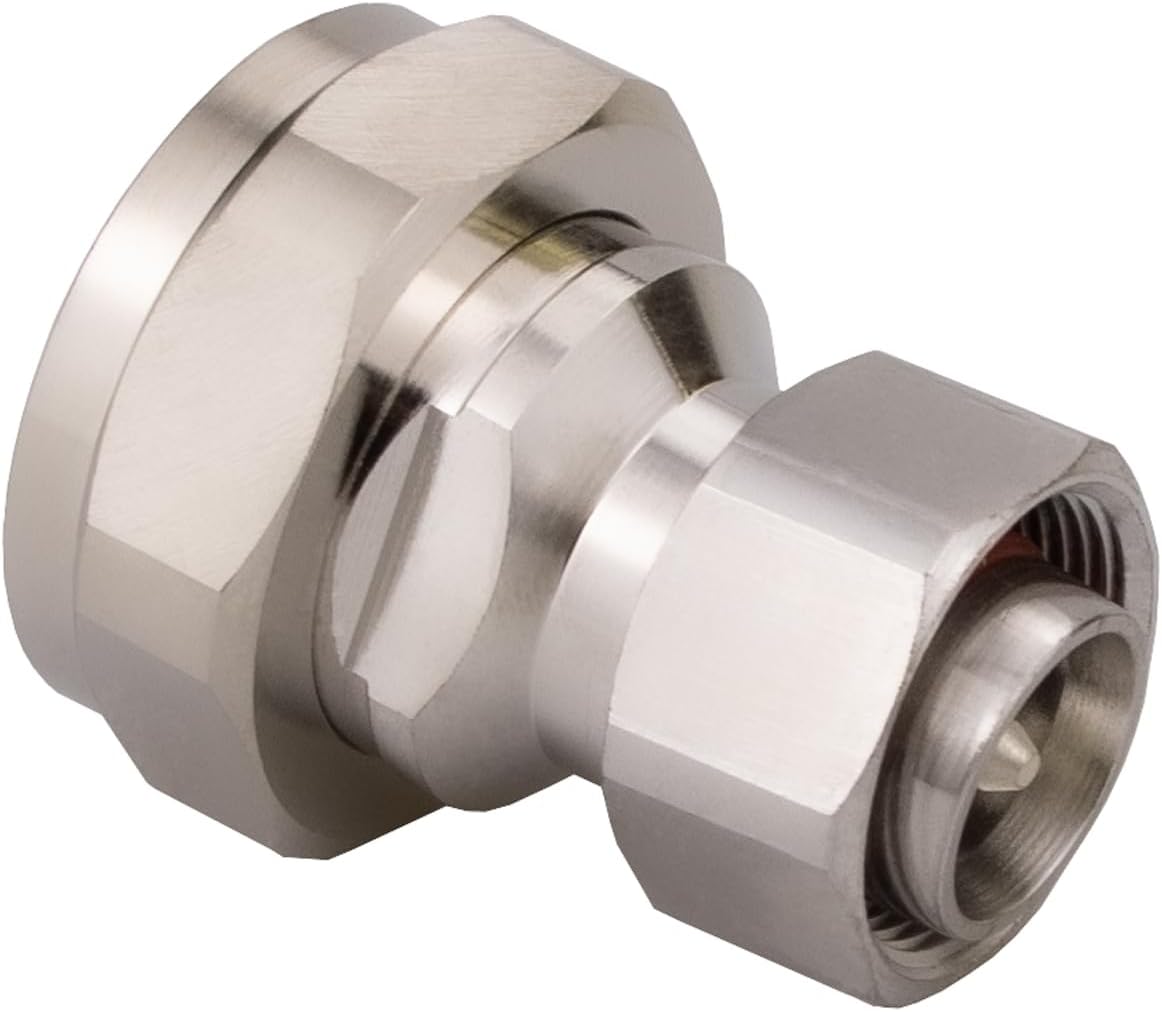

4.3/10 Mini Din Male to 7/16 L29 Male Adapter 4.3-10 MiniDIN to Din Adaptor Low PIM 160dBc$13.49
