150W 20A Adjustable Constant Current Electronic Load 2.4inch TFT Color Display 4 Working Modes USB Lithium Battery Capacity Monitor Tester Discharge Meter

Product Description

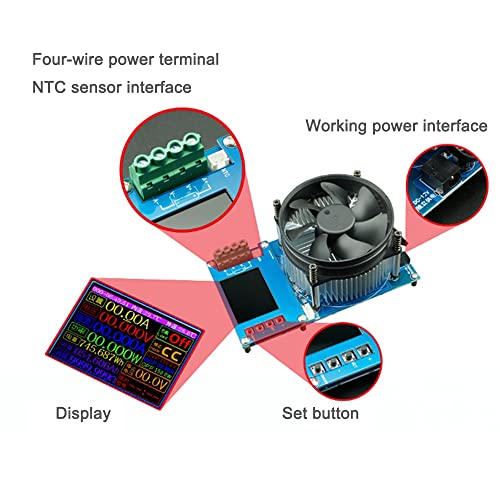

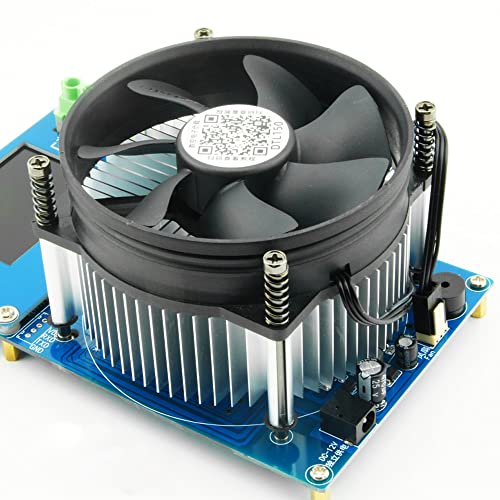

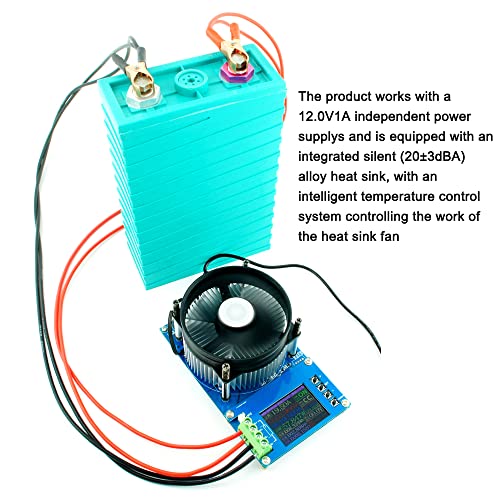

Specifications: Name: Electronic LoadMaterial: printed circuit boardLoad type: electronic loadWorking voltage: 12VDC with 12 V, 1A power adapterLoad voltage: 0-150VDCLoad current: 0-20ALoad power: 0-150W (maximum 60W above 120V)Wiring method: A+ V+ V- A- four wire system, downward compatible with two wire systemMaximum power measurement: 999.999WhMaximum capacity measurement: 999.999AhCumulative timing range: ddd:hh:mm:ss (days:hours:minutes:seconds)Operating modes: four modes CC constant current mode CV constant voltage mode CP constant power mode CR constant resistance modeOvervoltage protecting: supports up to 150V overvoltage protectionsOvercurrent protecting: supports up to 20A overcurrent protectionsOver power protecting: supports up to 150W over power protectionsLimited voltage discharge: also called low voltage protections, support, default unlimited voltage discharge, set according to your needsTime limit discharge: support up to 99 hours: 59 minutes time limit dischargeHeat sink: Alloy integrated silent heat sink, internal temperature ≥40°C or current ＞3A automatic operationExternal temperature measurement: connect NTC 3950 10K 1% temperature sensor to measure and display temperature from 0-100°CChinese and English interface switching: supportedZeroing of total data: supportedVoltage and current no load nulling: supportedVoltage open calibration: supportedCurrent open calibration: SupportScreen brightness adjustment: SupportScreen hibernation standby setting: SupportPC software online: Not supportedRestore factory settings: SupportItem size: 165 * 95 * 80mm / 6.50 * 3.74 * 3.15inItem weight: 400g / 0.88lb
