12mm 3-Pin COB LED Strip Wire Connector Solderless

About this item

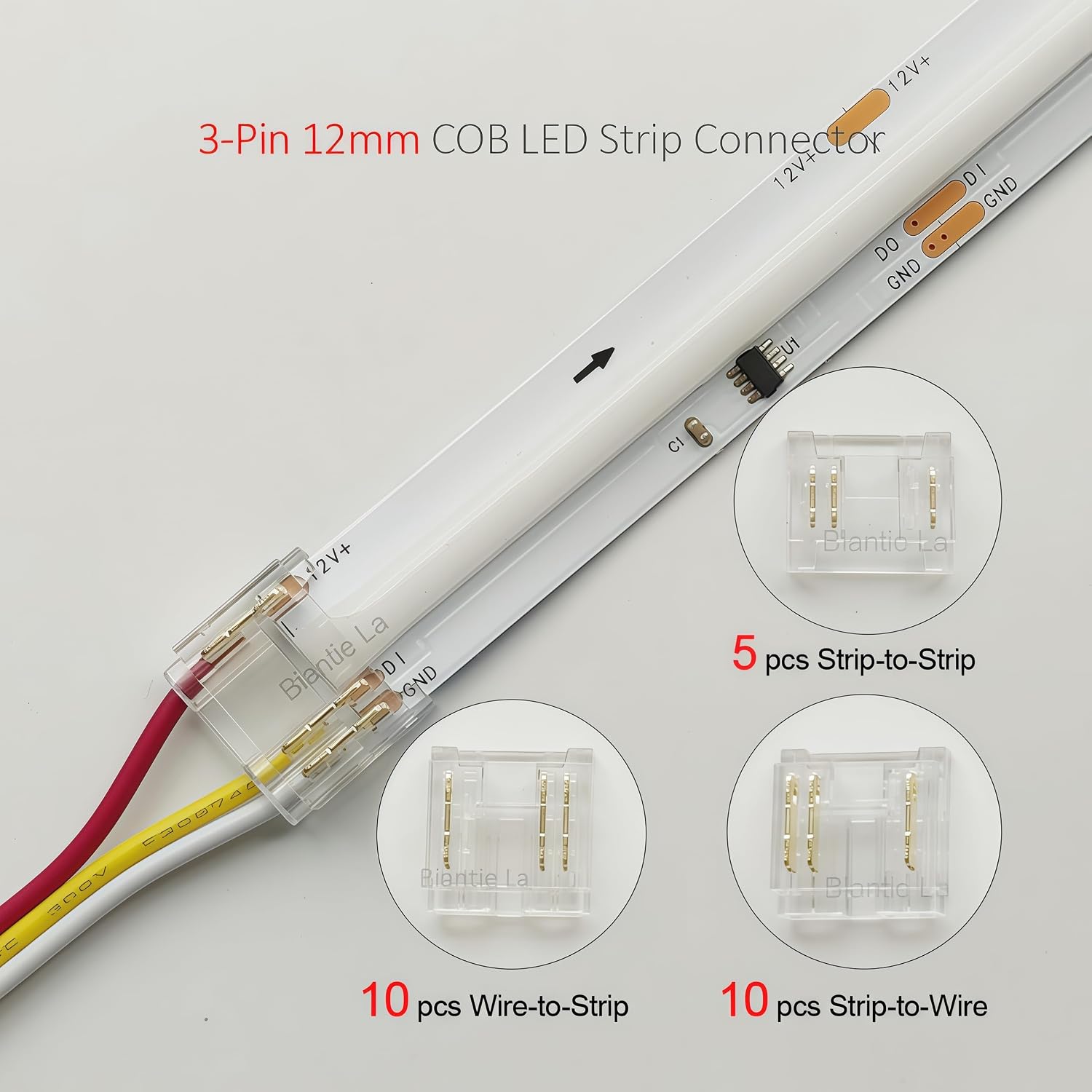

• Makes Corner Turns and Jumper Extensions Possible: 3-Pin 12mm COB strips have different pad layouts on each cut end, so this kit pairs 10 forward and 10 reverse strip-to-wire connectors with your own 3-pin 22 AWG wire, matching either end correctly without a soldering iron
• Pliers-Pressed, No Soldering Required: A standard pair of pliers quickly presses the copper tab through both the strip's and wire's insulation, seating a secure conductive joint with no soldering iron, open flame, or flux to deal with
• One 25-Piece Kit for Straight Runs and Power Hookups: 5 gapless strip-to-strip connectors handle straight, in-line splices, while the 20 strip-to-wire connectors above also connect strips directly to a power supply or controller
• Built for Hidden Wiring in Cabinets, Closets, and Display Cases: Compact housing tucks power connections behind under-cabinet lighting, closet shelving, staircase runs, or retail display cases without exposed splices
• Compatible with Two 3-Pin COB Systems: Works with 12mm 3-Pin CCT dual-white COB strips, wired +, CW, and WW, and 3-Pin addressable/SPI COB strips, wired GND, V+, and DATA — match the pad labels on your specific strip, since pin function differs between the two types. Pad spacing does not match 3-Pin SMD strips, and only 22 AWG wire will seat; 18 AWG or 20 AWG will not. A pair of pliers, sold separately, is required to press each connector closed, and every joint is fixed and not meant for repeated disassembly
