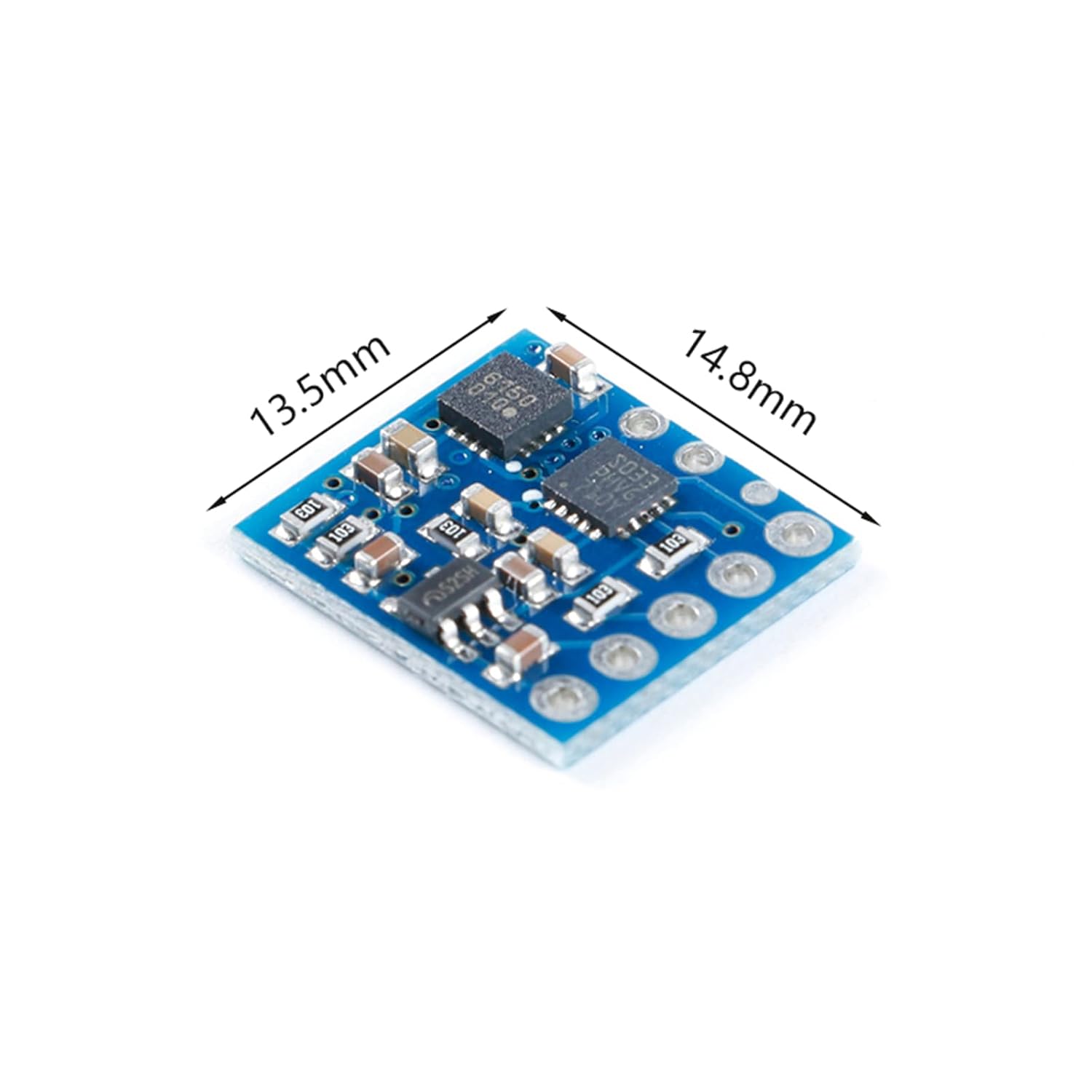

GY-271 GY-271M Electronic DC3-5V IIC Three axis Magnetic Sensor Module Field Compass Magnetometer Compatible HMC5883L Module for Arduino

About this item

• 3-Axis Magnetoresistive Sensors and ASIC in a 3.0x3.0x0.9mm LCC Surface Mount Package. Small Size for Highly Integrated Products. Just Add a Micro Controller Interface, Plus Two External SMT Capacitors. Designed for High Volume, Cost Sensitive OEM Designs. Easy to Assemble & Compatible with High Speed SMT Assembly. 12-Bit ADC Coupled with Low Noise . AMR Sensors Achieves 5 milli-gauss . Resolution in ±8 Gauss Fields.
• Enables 1° to 2° Degree Compass Heading Accuracy; Built-In Self Test; Enables Low-Cost Functionality Test after Assembly in Production; Low Voltage Operations (2.16 to 3.6V); and Low Power Consumption (100 μA); Compatible for Battery Powered Applications; Built-In Strap Drive Circuits; Set/Reset and Offset Strap Drivers for Degaussing, Self Test, and Offset Compensation; I2C Digital Interface ; Popular Two-Wire Serial Data Interface for Consumer Electronics; Lead Free Package Construction
• The module designed for low-field magnetic sensing with a digital interface for applications. The module includes our state-of-the art, high-resolution HMC118X series magneto-resistive sensors plus an ASIC containing amplification, automatic degaussing strap drivers, offset cancellation,and a 12-bit ADC that enables 1° to 2° compass heading accuracy. The I2C serial bus allows for easy interface. The HMC5883L is a 3.0x3.0x0.9mm surface mount 16-pin leadless chip carrier (LCC).
• The HMC5883L utilizes Honeywell’s Anisotropic Magnetoresistive (AMR) technology that provides advantages over other magnetic sensor technologies. These anisotropic, directional sensors feature precision in-axis sensitivity and linearity. These sensors’ solid-state construction with very low cross-axis sensitivity is designed to measure both the direction and the magnitude of Earth’s magnetic fields, from milli-gauss to 8 gauss.
• 【PIN CONFIGURATIONS】 SCL：Serial Clock – I2C Master/Slave Clock; VDD：Power Supply (2.16V to 3.6V); NC：Not to be Connected; S1：Tie to VDDIO; NC：Not to be Connected; NC：Not to be Connected; NC：Not to be Connected; SETP：Set/Reset Strap Positive – S/R Capacitor (C2) Connection; GND：Supply Ground; C1：Reservoir Capacitor (C1) Connection; GND：Supply Ground; SETC：S/R Capacitor (C2) Connection – Driver Side; VDDIO：IO Power Supply (1.71V to VDD)
