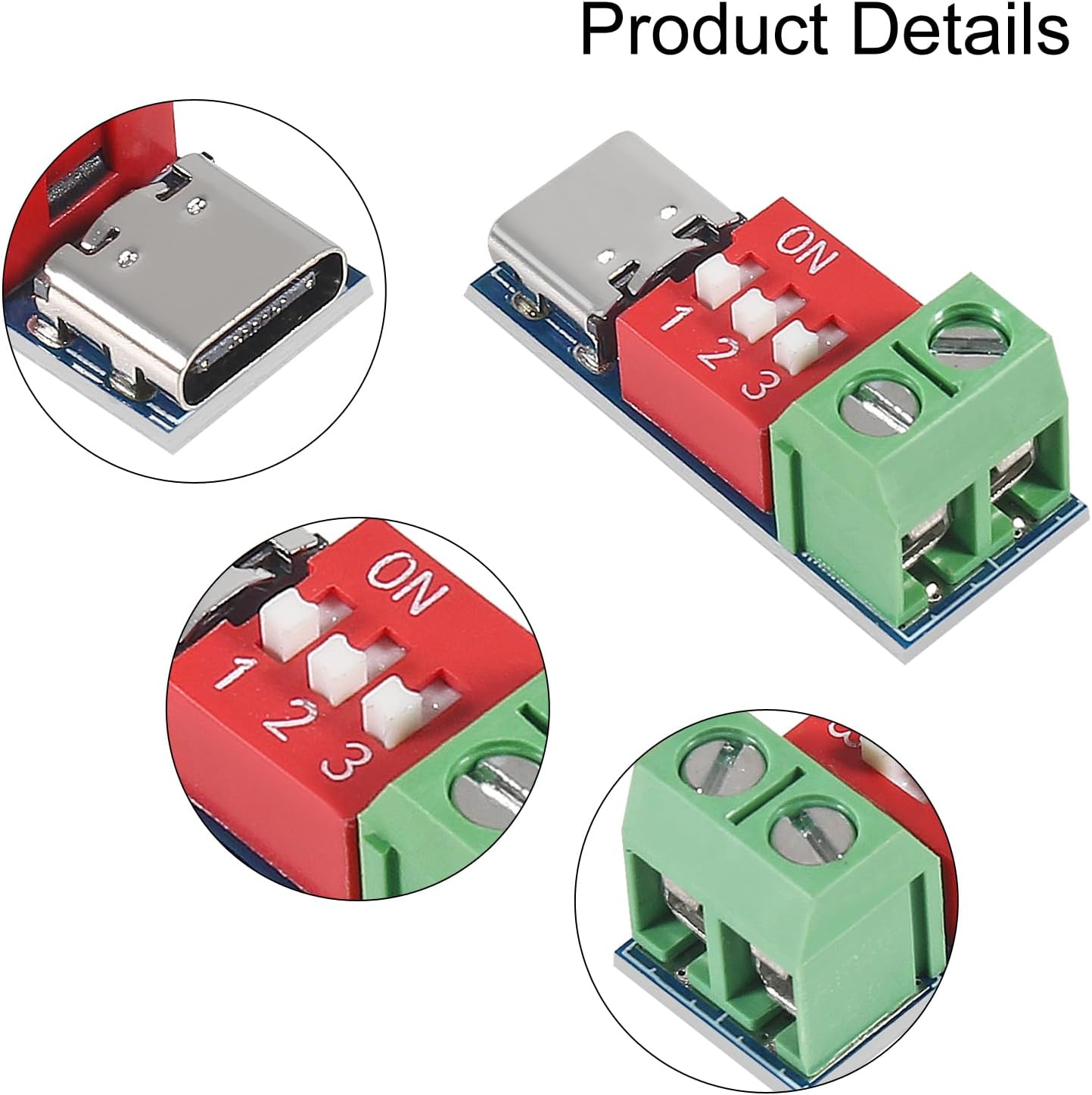

UMLIFE 2PCS USB-C PD Trigger Board Module PD/QC Decoy Board Fast Charge USB Type-c to 12v High Speed Charger Power Delivery Boost Module

$6.99

★ 4.324 reviews

Product Information

ASINB0DPQJD2T1

CategoryOther

About this item

Maximum output current can reach 3 A, it is recommended to use below 1.5 for a long time
Output ripple: less than 30 mV; Switching frequency: 1.5 MHz (higher), usually 1 MHz；the working temperature is -40 ℃-85 ℃
Support USB TypeC PD, forward and reverse insertion detection and automatic switching
PD Decoy PD Decoy Board Fast USB Modules TypeC Power Supply Change Modules 5V-20V Adjustable Test Board Electronic
PD decoy supports PD3.0/2.0, BC1.2 and other and fast charging protocols, supports up to 100W power.

Product Description

Charger Power Delivery Boost ModuleFeatures:1. The PD decoy supports PD3.0/2.0, BC1.2 and other boost fast charging protocols, supports up to 10ow power, and provides functions such as over-temperature and over-voltage protection.2. The voltage can be adjusted by the dial switch, and the output voltage is up to 20V.3. Support PD3.0/2.0, BC1.2 and other fast charging protocols4. Support USB Type-C PD, support positive and negative insertion detection and automatic switching5. Support 4V to 22V input voltage Parameters:Input voltage: support 4V to 22VOutput voltage: up to 20VInterface: Support USB Type-C PDPower: up to 100WProduct size: 11*25.7mmInstructions for use: CFG1 corresponds to DIP switch 1CFG2 corresponds to DIP switch 2CFG3 corresponds to DIP switch 3Dial down to 1, dial up to 0.Toggle switch to request the appropriate voltage according to the charger protocol The package includes:2X Decoy Module
