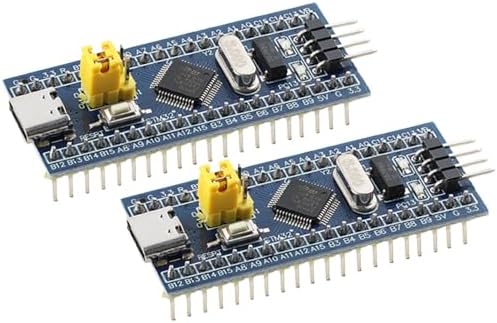

2Pcs STM32F103C8T6 ARM 32-bit MCU Development Board with Type-C Interface - Mini System Board for Microcontroller Learning Module

About this item

• 【High-Performance STM32 Development Board for Industrial and IoT Projects】 This STM32F103C8T6-based development board is designed for industrial control, IoT terminals, and sensor networks. It features a powerful ARM Cortex-M3 core running at 72MHz, with 64KB Flash and 20KB SRAM for efficient program and data storage. The wide voltage input (4.5V–36V DC) ensures compatibility with various power sources, making it Suitable for diverse applications.
• 【Arduino Compatible & Multi-Interface Support for Easy Prototyping】 Fully compatible with Arduino IDE, Keil MDK, and other popular development s, this board offers 37 GPIOs, 10 12-bit ADC channels, and multiple communication interfaces including USART, SPI, I²C, USB 2.0, and CAN. The built-in SWD debugging interface simplifies programming and real-time testing, accelerating your development process.
• 【Ultra-Low Power Consumption for Energy-Efficient Applications】 With an operating current of just 36mA in full-speed mode and a standby current as low as 2µA, this Reliable development board is Suitable for energy-efficient designs. Its wide operating temperature range (-40°C to +85°C) ensures reliable performance in harsh s, making it suitable for long-term deployment.
• 【Robust Design with Built-In Features for Simplified Development】 Equipped with user LEDs, reset circuitry, and BOOT mode jumpers, this board streamlines prototype verification. The on-board AMS1117 regulator provides a stable 3.3V output (up to 800mA), while the Type-C interface supports both power supply and programming. This all-in-one solution reduces the need for external components.
• 【Comprehensive Technical Support for Smooth Integration】 The board includes detailed pin functions, clear documentation, and troubleshooting guides for common issues like USB recognition, ADC sampling, and deep sleep current anomalies. With support for ST-Link debugging and easy firmware updates, it’s a reliable choice for engineers and hobbyists alike.
