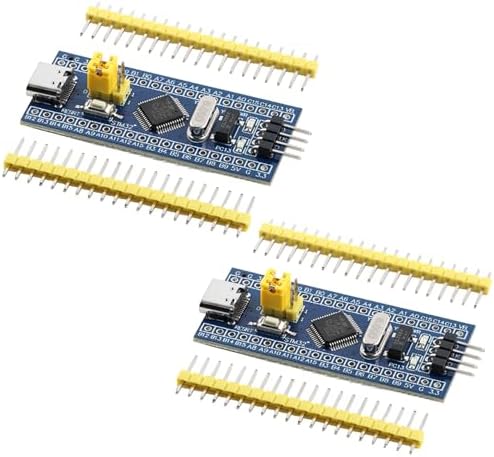

2Pcs STM32F103C8T6 Development Board with Type-C, ARM 32-bit MCU Core, No Soldering, Minimum System Board for Microcontroller Learning Module

$9.99

★ 4.52 reviews

Product Information

ASINB0FK5B6MCM

CategorySports & Outdoors

Merchantdragonlee

About this item

【High-Performance STM32 Development Board for Advanced Projects】 This Reliable STM32F103C8T6 development board features a powerful ARM Cortex-M3 core running at 72MHz, making it Suitable for complex real-time control applications. With a wide input voltage range of 4.5V–36V DC and an onboard MP1584EN voltage regulator, it ensures stable power delivery in various s.
【Versatile Interface Options for Easy Expansion】 Equipped with 37 programmable GPIO pins, 3 USARTs, 2 SPIs, 2 I²Cs, and a Type-C USB 2.0 interface, this STM32 development board offers flexible connectivity for sensors, displays, and other peripherals. The built-in 12-bit ADC (1µs conversion rate) supports high-precision analog input for a wide range of applications.
【Reliable Design for Reliable Performance】 Designed to operate in extreme temperatures from -40°C to +85°C, this development board is Suitable for industrial automation, smart home gateways, and UAV flight control systems. Its four-layer gold PCB with 4 positioning holes ensures durability and precise mounting in professional setups.
【Integrated RGB LED & Debugging Support for Smooth Development】 The board includes a WS2812B RGB tri-color LED for visual feedback and a SWD debugging interface compatible with ST-Link/V2 programmers. This makes it easy to program, test, and debug your projects, whether you're a beginner or an advanced developer.
【Comprehensive Technical Support for STM32CubeMX Users】 With full support for STM32CubeMX and detailed pinout documentation, this development board simplifies the design process. It also comes with troubleshooting guides for common issues like ADC noise, SWD connection problems, and power stability, ensuring a smooth user experience from setup to deployment.

Product Description

the of product parameters input voltage: 4.5V-36V DC (wide voltage compatible, onboard MP1584EN regulated to 3.3V) of core chip of: STM32F103C8T6 (imported, ARM Cortex-M3 core, 72MHz main frequency) storage configuration: Flash :64KB (program storage) 20KB (Operating Memory) SRAM interface resource : GPIO :37 × Programmable Pins (All Leads to 2.54mm Pins) communication interface :USART× 3, SPI× 2, I²C× 2, USB 2.0 full speed (Type-C interface) Analog Interface for :12-bit ADC × 10(1μs Conversion Rate) debugging interface :SWD (four-wire system, support ST-Link/V2 burning) for onboard resources: User button x 1 (programmable) RGB tri-color LED(WS2812B, independent control) 8MHz crystal (master clock) +32.768kHz crystal (RTC) power: Operating Mode :33mA @ 72MHz (Typical) in standby mode: 0.2 μA(RTC hold) of operating temperature of: -40°C to +85°C (industrial grade) product pin function VIN: DC input positive (4.5V-36V DC, connected to the positive pole of the power supply) GND: power supply and logic ground 3 V3: 3.3V regulated output PA9/PA10: USART1_TX/USART1_RX PA11/PA12: USB_DM/USB_DP PB6/PB7: I2C1_SCL/I2C1_SDA PA0-PA7: ADC_IN0-ADC_IN7 SWDIO/SWCLK: debug interface BOOT0: boot mode selection: Grounding: User Flash boot 3V3: system memory boot NRST: Hardware Reset
