Genuine Square D HOMT3020 30/20 Amp Tandem Circuit Breaker Kit

About this item

• GENUINE TANDEM BREAKER — This offer includes one (1) authentic HOMT3020 tandem circuit breaker from Square D's trusted Homeline series. This space-saving component is a factory-new, unused Original Equipment Manufacturer (OEM) part, providing two independent circuits in a single breaker body. Its thermal-magnetic mechanism is engineered for reliable overcurrent protection, making it an ideal solution for adding circuits to a physically full load center in a garage or basement without requiring a sub-panel.
• DUAL-AMPERAGE PROTECTION — This single device functions as two separate circuits: one rated for 30 Amps and one rated for 20 Amps. This configuration is ideal for powering a workshop or garage where a dedicated 30A circuit for a welder or compressor and a separate 20A general-purpose outlet circuit are needed from a single panel slot. It is also a popular solution for RV power applications, effectively doubling your panel's capacity.
• HOMELINE PANEL COMPATIBILITY — Critical Installation Note: Tandem breakers are designed for use only in Square D Homeline load centers that have a panel wiring diagram explicitly indicating which bus bar slots will accept them. This standard 1-inch format breaker must be installed in a designated position to function correctly. It is not compatible with QO series panels. Please verify your panel's specifications and local electrical codes prior to installation to ensure full compliance.

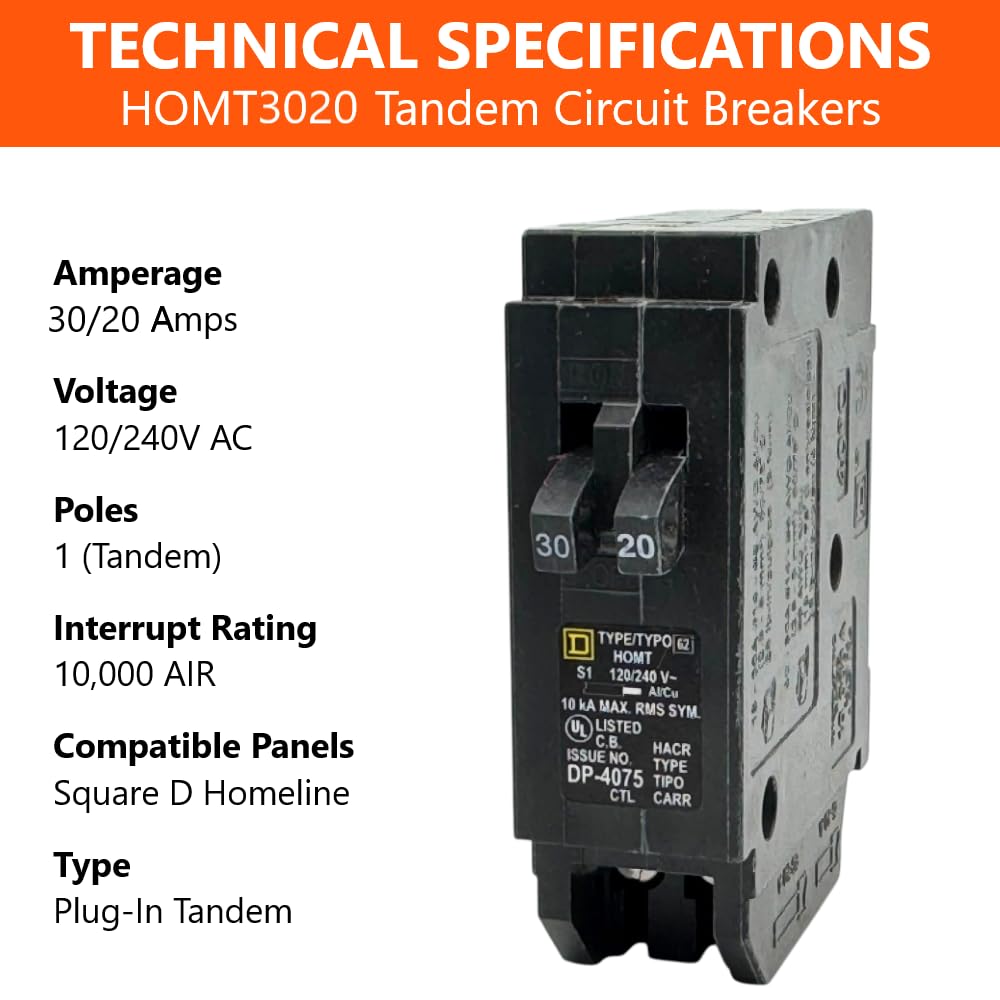

• TECHNICAL SPECIFICATIONS — This circuit breaker is Underwriters Laboratories (UL) Listed and ANSI Certified with a 10,000 Ampere Interrupting Capacity (10kAIC). The 30A terminal accepts #10-8 AWG wire (Al/Cu). The 20A terminal accepts #14-8 AWG wire (Al/Cu). The terminals have a recommended tightening torque of 35 lb-in to ensure a secure, safe connection for your workshop or garage circuits.
• INSTALLATION KIT — This is a value-added kit from FalconSupply. The box includes one (1) HOMT3020 Tandem Breaker, one (1) packet of AGS dielectric grease for terminal lug and bus bar contact lubrication, and one (1) Pro-Finishing Hardware Pack providing two zinc-plated steel combination-drive panel cover machine screws and one green hex-head grounding machine screw.
