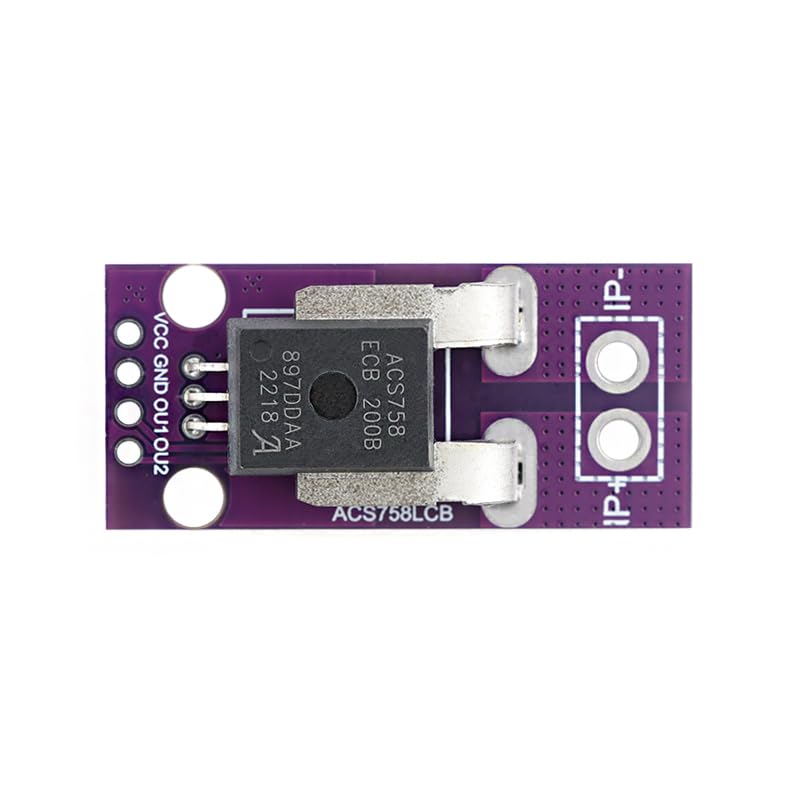

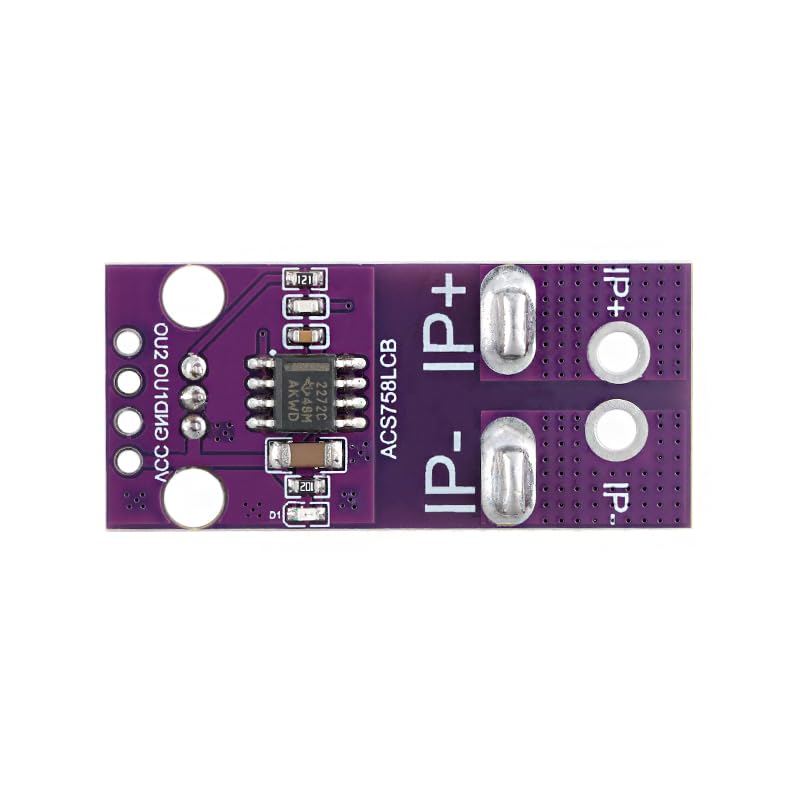

ACS758ECB-200B Hall Effect Current Sensor Module 200A DC/AC for Power Supply Monitoring

About this item

• 【High-Precision Current Monitoring】 10mV/A sensitivity; ±1% linearity; ±1.2% accuracy; 4 μs response time; 120kHz bandwidth; suitable for motor control and power management systems
• 【Robust Electrical Isolation】 4800Vrms isolation withstand voltage; 1187Vdc working voltage; built-in magnetic shielding ring to reduce stray field interference; safe for industrial applications
• 【Wide Temperature Range Stability】 Operates from -40°C to +85°C; maintains ±1.2% accuracy across full temperature range; Suitable for harsh Settings like solar inverters and charging stations

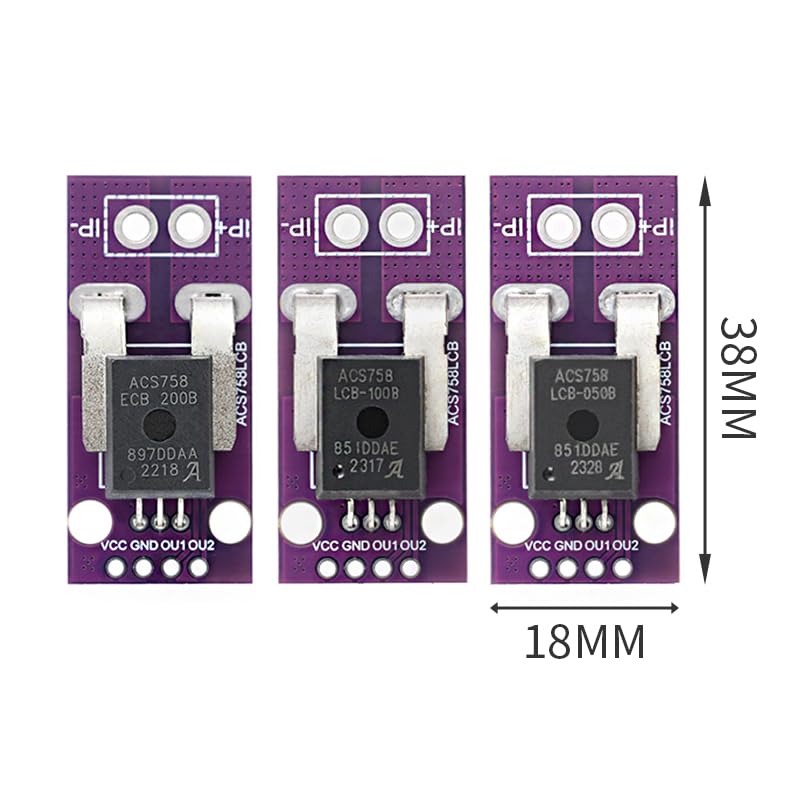

• 【Easy Integration with Popular Platforms】 Compatible with for for Arduino , for for Raspberry Pi, STM32, LabVIEW, and MATLAB; 5-CB through-hole package with PCB area ≤15mm²; simple wiring and low power consumption
• 【Reliable Performance with Calibration Support】 Zero-current offset adjustment available; 100 μΩ conductor resistance reduces heat loss; 200A bidirectional measurement with 400A surge capability; easy to calibrate for accurate readings
