12th 8505 Gen New Soft Router SFP Network Card i226-V 2.5G4 2SATA Firewall Appliance Mini PC Proxmox Server (8505, 8G+256G)

$368.00

Product Information

ASINB0GV7JMDD2

CategoryComputers & Accessories

MerchantOakNode

About this item

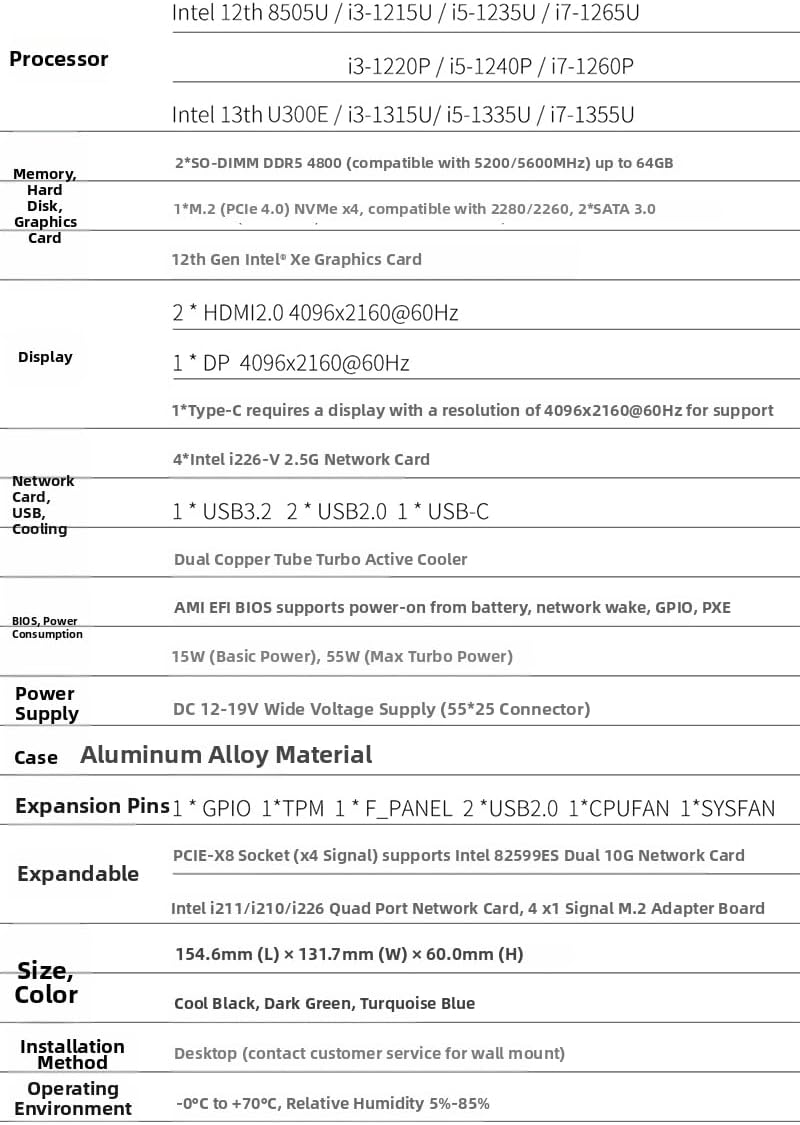

Memory: 2 x SO-DIMM DDR5 4800 (compatible with 5200/5600 MHz) Maximum 64G
Hard drive 1 * M.2 (PCle 4.0) NVMe x4 compatible with 2280/22110 size 2 * SATA 3.0
Graphics card: 12th generation Intel UHD Graphics / Radeon RX Vega Graphics
Displaying 2*HDMI 2.0 4096x2160 @ 60Hz 1*DP 4096x2160 @ 60Hz 1*Type-C requires a display with a resolution of 4096x2160 @ 60Hz to support the display.

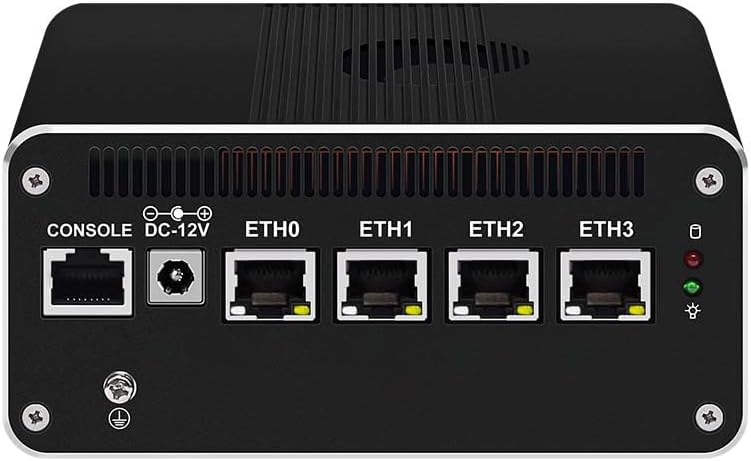

4*Intel i226-V 2.5G network card USB 1*USB 3.2 2*USB 2.0 1*USB-C cooling system dual copper tube turbo active radiator
BIOS, AMI, EFI BIOS support comes from power-on self-test, network wake-up, GPIO, PXE
Power consumption: 15W (base power consumption), 55W (maximum turbo power consumption). Supply voltage: DC 12-19V wide voltage range (55*25 connector). Case: Aluminum material.
Expansion pins: 1* GPIO, 1* TPM, 1* F_PANEL, 2* USB2.0, 1* CPUFAN, 1* SYSFAN. Expandable PCIE-X8 socket (4 signals). Can accommodate Intel 82599ES dual 10-Gigabit network cards, Intel i211/i210/i226 four-port network cards, and 4 x1 signal M.2 adapter boards.

Product Description

Intel 12th Gen Alder Lake / 13th Gen Raptor Lake Pin to Pin platform The base TDP power consumption of the hybrid architecture processor with a large core and a small core is only 15W. Built-in PCIE-X8 slot supports x4 signals and is compatible with Intel 82599ES dual 10-gigabit network cards.Built-in PCIE-X8 slot with x4 interface supports Intel 211/i210/i226 quad-port network card.The built-in PCIE-X8 slot supports the signal being divided into 4 M.2NVMex1 signals.1 M.2 MKey support (PCle 4.0) x 4 signals are compatible with 2280/22110 and 2 SATA 3.0.Built-in 4 Intel 226-V2.5G network cards.Dual-channel SO-DIMM DDR5 compatible with 4800/5200/5600MHz, maximum 64G.Support DP++ (1.4) + 2*HDMI (2.0) + Type-C (for DP signal) with synchronous and asynchronous triple displays.Type-C storage rate (10 Gbps), (display function requires support of 4096x2160@60Hz by the display).1 USB 3.2 Gen1 (5 Gbps); 2 USB 2.0 with 4 USB 2.0 pins built-in.TF card supports data storage and system booting.The DC module supports a wide voltage input range of 12 to 19 volts.The entire machine is equipped with an all-aluminum chassis and features dual copper-tube turbo fans for active cooling.
