ESP32-S3-DEV-KIT-N8R8, 8MB Flash +8MB PSRAM, WiFi BLE 5.0, USB-C Dev Board

About this item

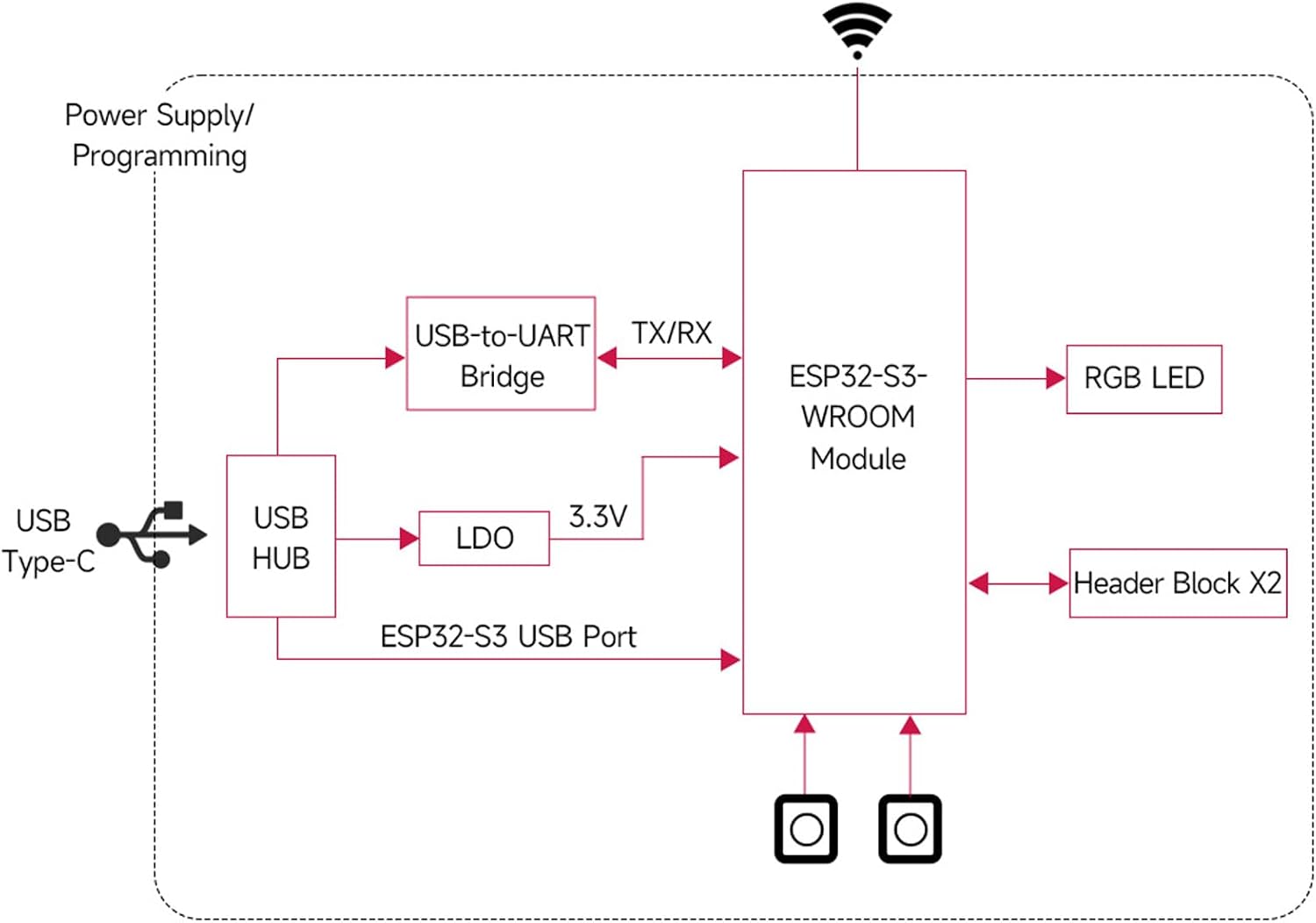

• USB-C Development Interface with Onboard CH343 & CH334: Onboard CH343 UART serial bridge and CH334 USB HUB chips enable USB and UART development through a single USB Type-C port. Flash and debug via USB OTG while monitoring serial output via UART at the same time, simplifying programming, debugging, and deployment. Reversible Type-C connector prevents wrong-way insertion

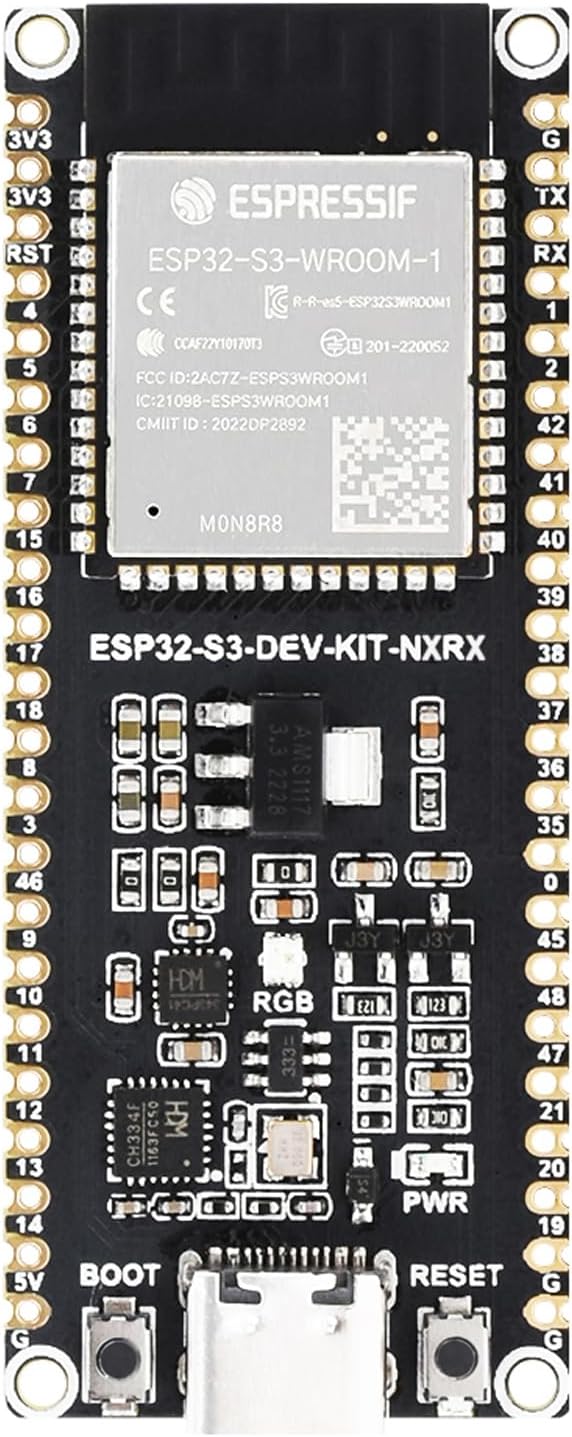

• ESP32-S3-Devkitc-N8R8 with 8MB Flash & 8MB PSRAM: Powered by the ESP32-S3-WROOM-1-N8R8 module with a dual-core Xtensa LX7 processor running up to 240MHz. Features 8MB Quad SPI Flash and 8MB PSRAM, providing storage and memory for wireless communication, sensor data processing, and IoT applications. Also integrates 512KB SRAM and 384KB ROM
• Wifi & Bluetooth LE 5.0 Dual-Mode: Supports 802.11 b/g/n (2.4GHz) WiFi and Bluetooth 5 (LE) with Bluetooth Mesh capability. Dual-mode wireless connectivity for IoT applications requiring both WiFi networking and low-power BLE communication — suitable for smart home devices, wireless sensor networks, and wearable electronics
• Multiple Development Environments: Compatible with ESP-IDF, Arduino, and MicroPython. Pin-compatible with ESP32-S3-DevKitC-1, so existing expansion boards and accessories fit directly. Castellated holes allow soldering the module onto custom PCBs for production integration
• Compact & Power-Efficient Design: Board dimensions: 63.3 × 25.4mm with 4 M2 mounting holes. Supports Deep Sleep (~10μA), Light Sleep, and Modem Sleep modes for battery-powered applications. Multiple peripheral interfaces including SPI, I2C, UART, ADC, and PWM. Package includes 1× ESP32-S3-DEV-KIT-N8R8 board (pin headers not pre-soldered)
