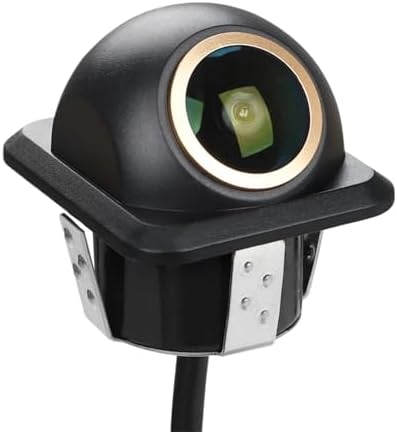

Reversing Camera Replacement for Car Backup Camera 1080P AHD Front/Side/Rear View Cam Wide Angle Fisheye Lens HD Night Vision Reverse Rear

Product Description

"For Car Backup Camera 1080P AHD Front/Side/Rear View Cam Wide Angle Fisheye Lens HD Night Vision Reverse RearGuiding Line：YesLength of Video Cable：6MWire or Wireless：WireAlarm Type：Vehicle Backup CamerasSignal Format Compatibility:1. AHD Signal: Ensure your car monitor supports AHD signals. If it doesn’t, For Switch to CVBS and restart the camera’s power. 2. AHD and CVBS switch: If your vehicle display does not support AHD, cut the orange loop to switch to the CVBS signal, then restart the camera’s power. Wire Functions:Orange Wire: Default is AHD signal. To switch to CVBS, cut the wire. Green Wire: Default is Mirror mode. To switch to Non-mirror, cut the wire. White Wire: Default is Guideline ON. To turn off the guideline, cut the wire. Note: After cutting any wire, reconnect the power and restart the device for the changes to take effect. 1. Check Signal Format: Ensure the correct signal format (AHD or CVBS) is selected based on your monitor’s compatibility. 2. Verify Connections: Make sure the red trigger wire is connected to the reverse light and the reverse-in cable on the monitor. 3. AUX-IN Option: If your monitor supports AUX-IN, you can connect the camera to the AUX-IN port. NTSC is used for CVBS cameras. PAL is used for AHD 1080P cameras. Replacement forget blurred images. Enjoy the clarity of designed for demanding drivers who don't accuracy and safety. Reversing camera with for precise detection of obstacles and pedestrians, even in total darkness. "
