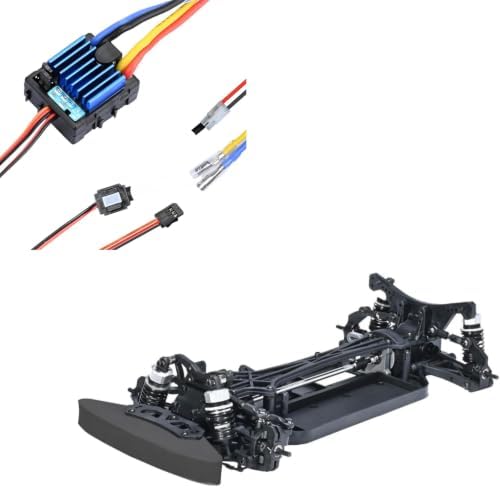

VRX RC 1/10 Scale 4WD On-Road Rolling Chassis Kit with Waterproof 60A Brushed ESC, DIY RC Car Build Bundle for 540/550 Brushed Motors, 2S-3S LiPo and 5-9 Cell NiMH

About this item

• 【UNIVERSAL COMPATIBILITY & PLUG-AND-PLAY DESIGN】The rolling chassis is compatible with popular 1/10 scale on-road RC models featuring a 258–261mm adjustable wheelbase and supports direct installation without modification. The ESC is engineered for 1/10, 1/12, and 1/16 scale on-road cars, off-road buggies, short course trucks, and rock crawlers, with plug-and-play compatibility for standard 540/550 brushed motors across various terrains.
• 【DURABLE CHASSIS & RESPONSIVE POWER DELIVERY】The chassis features an injection-molded nylon axle housing, reinforced suspension arms, and corrosion-resistant metal differential gears designed to withstand high-speed impacts and provide lasting performance on asphalt or concrete. The ESC supports 2S–3S LiPo and 5–9 cell NiMH batteries, delivering a 3A switching BEC for high-torque servos, 60A continuous/360A peak forward current, and 30A continuous/180A peak reverse current.
• 【LOW-CG TRANSMISSION & 3 SELECTABLE DRIVE MODES】The low-center-of-gravity transmission design works with powder metal differential gears to provide optimal power distribution for drifting, high-speed cornering, and faster acceleration than standard chassis. Built-in jumper pins let you select Forward/Brake/Reverse mode for everyday bashing, Crawler Mode with automatic drag brake for precise climbing, or Boat Mode with forward and reverse operation without braking.
• 【ADJUSTABLE STABILITY & SMART SAFETY PROTECTION】Weighing 2.5 lbs (1138g), the chassis features adjustable ground clearance for superior stability, while its modular design allows quick changes to the shock absorbers and wheelbase. The ESC combines an integrated heat sink with a two-step low-voltage cutoff that first reduces power and then shuts down to protect LiPo batteries, plus high-temperature protection that automatically reduces motor output above 100°C.
• 【CUSTOMIZABLE DIY BUILD & CRUCIAL MOTOR LIMITS】Create your own RC car using customizable body mounts, universal screw slots, the included step-by-step assembly guide, and compatible aftermarket parts for future upgrades. To prevent ESC damage with 540/550 motors, use ≥12T or below 30,000 RPM with a 2S LiPo/6-cell NiMH battery, and use ≥18T with a 3S LiPo/9-cell NiMH battery. Other electric parts required to complete the rolling chassis are not included.
