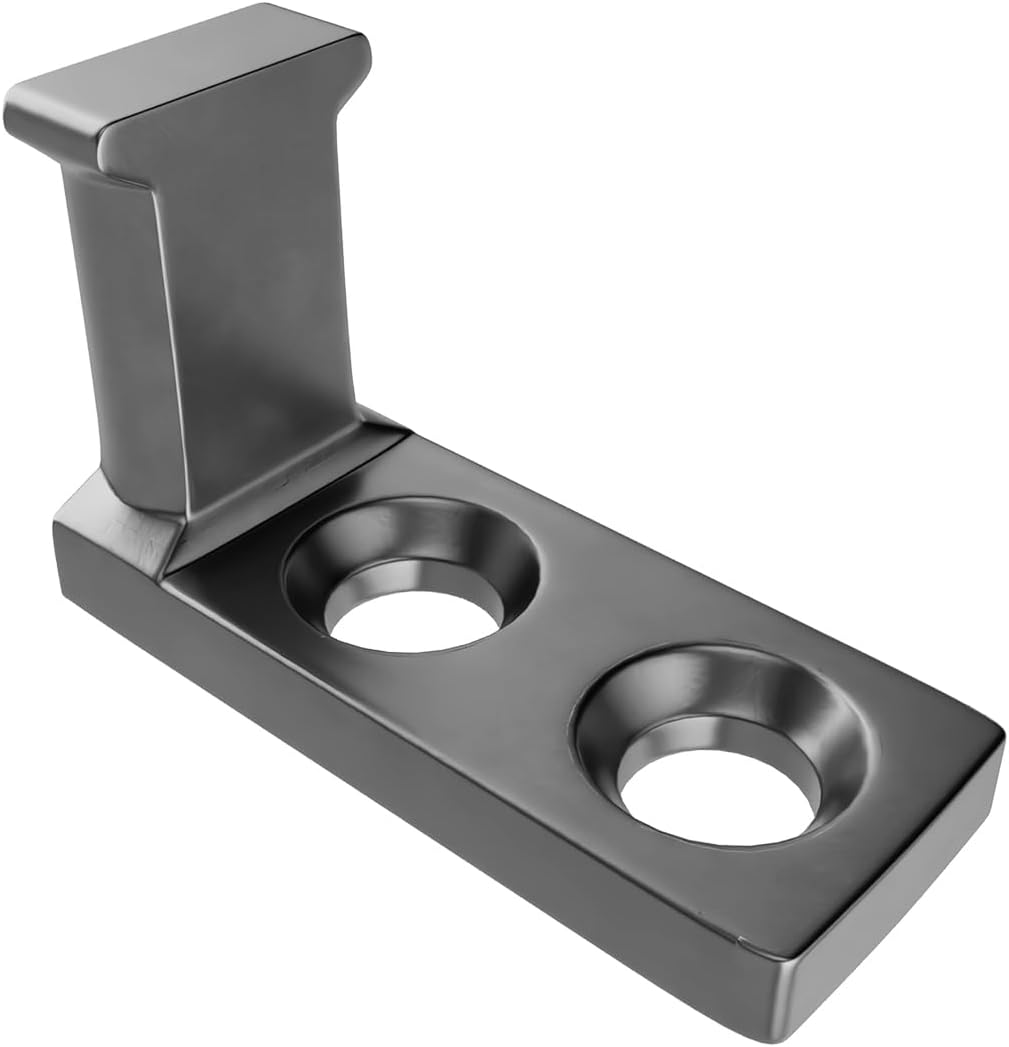

Brixwell 62-824 Pivot Bar Side Mount Metal Construction 1-1/4" Length 21/32" Height 1/2" Hole to Hole Space Window Balance Hardware Gray Finish

Product Information

About

Component constructed from Metal material for structural application.
Features a consistent Gray finish applied to the metal surface.
The overall Length dimension of this hardware piece is 1-1/4".
The specified Height dimension for this part is 21/32".
Hole To Hole Space measurement is precisely 1/2" center to center.
Base Width dimension is specified as 27/64" for mounting contact.
Used for sash tilt and vertical movement in window system

Product Description

Brixwell Pivot Bar Side Mount is a window balance hardware component used to connect the window sash to the pivot lock shoe within side mount window systems. The component is manufactured from metal material and supplied with a gray finish. The pivot bar has a Length of 1-1/4", forming the main body that fits into the sash and aligns with the balance channel during installation. The Height measures 21/32", which defines the vertical profile of the pivot bar when installed in the sash. The mounting configuration includes a Hole To Hole Space of 1/2", allowing the pivot bar to align with the mounting holes in the sash for keep attachment. The Base Width measures 27/64", forming the lower section that fits within the sash cavity and supports positioning during operation. When installed, the pivot bar extends into the balance channel and engages with the pivot lock shoe, allowing the sash to move up and down or tilt inward for cleaning. The metal construction forms the body of the pivot bar and supports its function within the window system. This pivot bar side mount is used as a replacement component where the Length, Height, Hole To Hole Space, and Base Width match the existing window hardware configuration.
