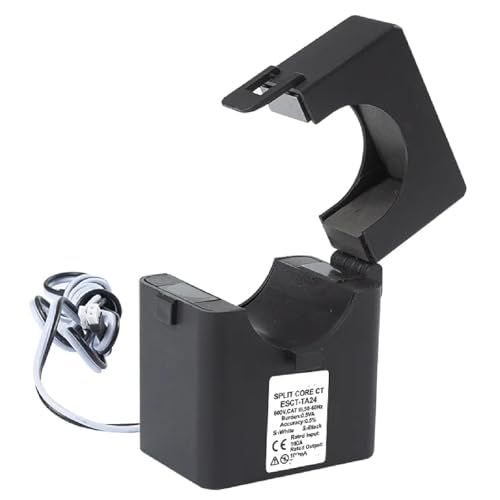

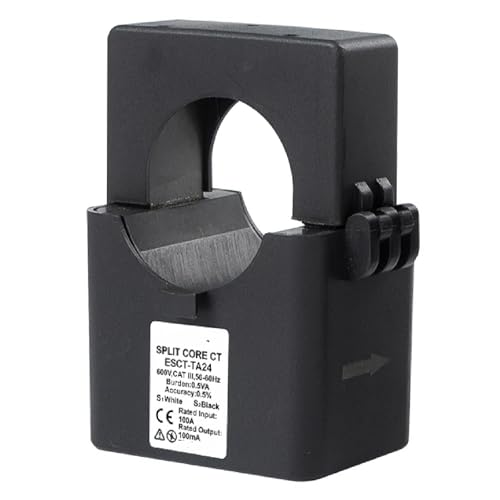

ESCT-TA24 Series, Split Core Current Transformer (ESCT-TA24 250A-100mA)

About this item

• SPLIT CORE DESIGN: The hinged split-core construction allows for quick, tool-free installation by clamping directly onto existing wires without any disconnection.
• WIDE PRIMARY CURRENT RANGE: Supports a primary current range of 50A to 250A, making it suitable for a variety of current monitoring and measurement applications.
• ACCURATE SECONDARY OUTPUT: Delivers a precise secondary current output of 40mA to 100mA, ensuring reliable and consistent current sensing performance.
• HIGH INSULATION VOLTAGE: Rated at 600Vac insulation voltage with CAT III classification, providing a safe and dependable solution for standard electrical systems.
• LOW PHASE ANGLE ERROR: Phase angle error of less than 2 degrees at 50% of rated current, and compatible with 50-60Hz frequency for improved measurement accuracy.
