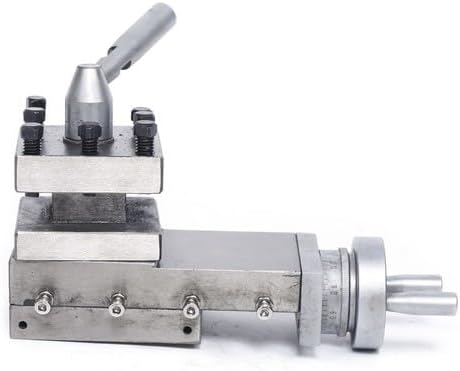

Lathe Tool Holder, 90mm Mini Lathe Quick Change Tool Post, Lathe Tool Post Holder,For DIY Small Lathes And Miniature Lathes

Product Information

About

Build to Last: It is made of high-class cast iron with a polishing process, which has strong rigidity, high hardness, excellent wear, and impact resistance performance, and long service life.
High Precision: The handwheel design equipped with precise scales allows every adjustment to the millimeter level. With clear scale markings, you can easily achieve precise positioning to meet the needs of complex parts machining.
Lightweight and Portable: It's compact (5.12*2.36in) and lightweight(6.28lbs), so you can carry and store it with less effort.
Easy to Operate: The ergonomic lever on the top provides you with a more convenient operating experience. With a simple turn of the lever, you can quickly adjust the position or angle of the tool, which greatly improves work efficiency.
Good Stability: The sturdy base provides solid support for the entire unit, which remains stable even under intensive working conditions, ensuring consistent processing quality.

Product Description

DetailsRounded Edges: The rounded edges not only ensure safe use but also enhance the texture of the product.Black Screws: They are used to hold the workpiece securely and ensure that it does not move during machining. Threaded Nuts: They allow for firm connection without easily loose, so you can use it with peace of mind.ApplicationThis product is suitable for DIY mini lathes, micro lathes, and small lathes for machining end face, external round, boring, and so on.SpecificationColor: Black+SilverMaterial: Cast IronProcess: PolishingMount Type: Lathe MountAssembly Required: Yes Applicable Models: For 180V Micro LathesHandwheel length: 60mm/ *2.36in Product Size(Without Handwheel): 130*60mm/ 5.12*2.36in Center Height: 47mm/1.85inGroove Height: 16mm/0.63inStroke: 90mm/3.54inPackage Size: 23*16*13cm/9.06*6.3*5.12inGross Weight: 3kg/6.61lbsNet Weight: 2.85kg/6.28lbsPackage Included1*Lathe Tool Holder1*Lever Handle
