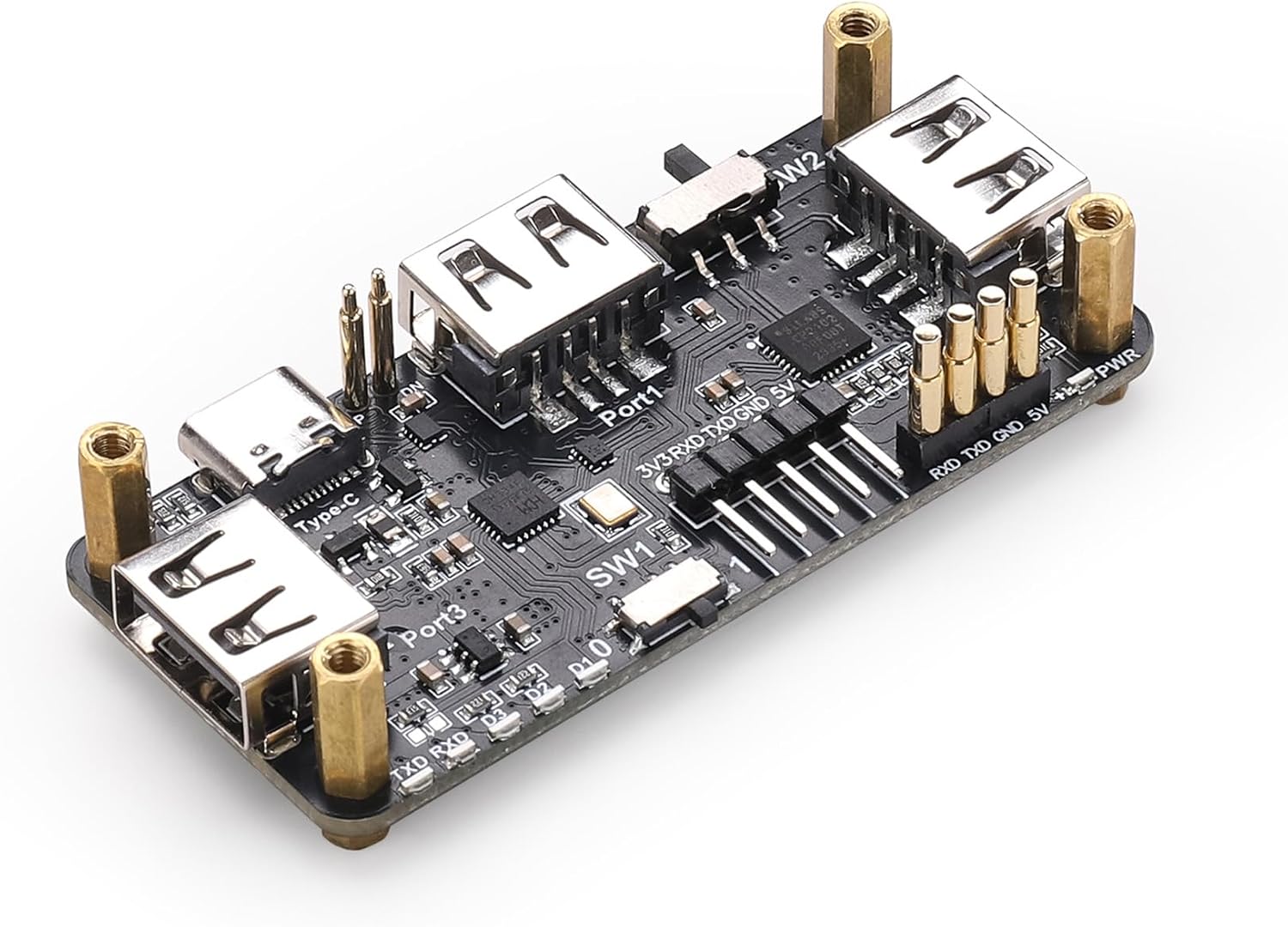

Pi USB HUB for Rasp-berry Pi Zero, 3-Port USB 2.0 Expansion Board with USB to TTL, Type-C Dual Mode, Plug & Play GPIO Connection, Status Indicators for IoT and Fits Arduino Projects

Product Information

About

3-Port USB 2.0 Expansion for Raspberry Pi Zero: This USB HUB expansion board provides three USB 2.0 ports, allowing connection of keyboard, mouse, storage devices, and peripherals for Pi Zero projects and IoT development.
Integrated USB to TTL Serial Converter: Includes an onboard USB to TTL interface (CP2102-GMR) with TXD/RXD pins, enabling direct serial debugging of Pi Zero or independent communication with Ar-duino and microcontrollers.
Type-C Dual Mode & Host Switching: Features a Type-C port that works as either USB HUB host or USB to TTL interface, with onboard switches to freely select Rasp-berry Pi Zero or Type-C as the upstream host.
Real-Time Status Indicators: Equipped with power LED, USB device LEDs, and TX/RX indicators, this Pi Zero USB HUB provides clear feedback for power, device mounting, and serial data transmission.
Plug & Play GPIO Connection: Designed with pogo pin connectors for solder-free installation to Pi Zero GPIO. Compact (65×30mm) and reliable, perfect for DIY electronics, IoT applications, and embedded projects.

Product Description

Overview The Pi USB HUB is a compact and reliable 3-port USB 2.0 expansion board designed specifically for the Raspberry Pi Zero series, solving the challenge of limited native USB ports. With three full-size USB-A connectors, it allows you to connect storage devices, keyboards, mice, WiFi dongles, and more, expanding the versatility of your Pi Zero setup. This USB hub also integrates a USB to TTL serial converter (CP2102-GMR), which provides direct debugging access to the Pi Zero or independent output via a 5V/3.3V TXD/RXD/GND pin header. It is ideal for Firmware flashing, IoT development, or external microcontroller communication. The Type-C dual-mode port supports both USB HUB and USB to TTL functions. With the onboard sliding switches, you can choose whether the hub is powered and controlled by the Pi Zero or by an external Type-C host, giving maximum flexibility. To enhance usability, the board features multiple status LEDs: one for power, three for USB device connection, and two for TXD/RXD activity, offering real-time feedback for monitoring device operation and Data Transfer Installation is plug-and-play thanks to the pogo pin GPIO connection, eliminating the need for soldering and ensuring a stable interface with the Pi Zero. Compact in size (65 mm × 30 mm) and powered at 5 V, this USB hub for Rasp-berry Pi Zero is lightweight yet durable, making it perfect for DIY makers, IoT developers, robotics enthusiasts, and embedded system engineers. Whether you are expanding your Rasp-berry Pi Zero into a mini desktop, building an IoT node, or experimenting with Arduino-compatible serial devices, the Pi USB HUB with USB to TTL provides a safe, efficient, and versatile solution. Package Conents 1. Pi USB HUB x1 2. Screws Pack x1
