Product Information
About
Power Output: 1600W Peak / 400W RMS total, with dyno-certified 100W RMS x 4 at 2 Ohm, 60W RMS x 4 at 4 Ohm, or 200W RMS x 2 bridged at 4 Ohm at 14.4 VDC
Compact Size: Space-saving chassis fits tighter vehicle installations while the aluminum heatsink supports heat dissipation
High Efficiency: 86% efficient Class D design reduces wasted power and helps minimize strain on the vehicle battery during operation
Crossover Control: Full-range, low-pass, or high-pass modes with adjustable 50Hz-250Hz LPF and HPF, plus 4Hz-45kHz frequency response
Connections and Monitoring: Tiffany-style RCA inputs, 4 AWG power and ground terminals, 10 AWG speaker outputs, and power, status, and clip LEDs
Product Description

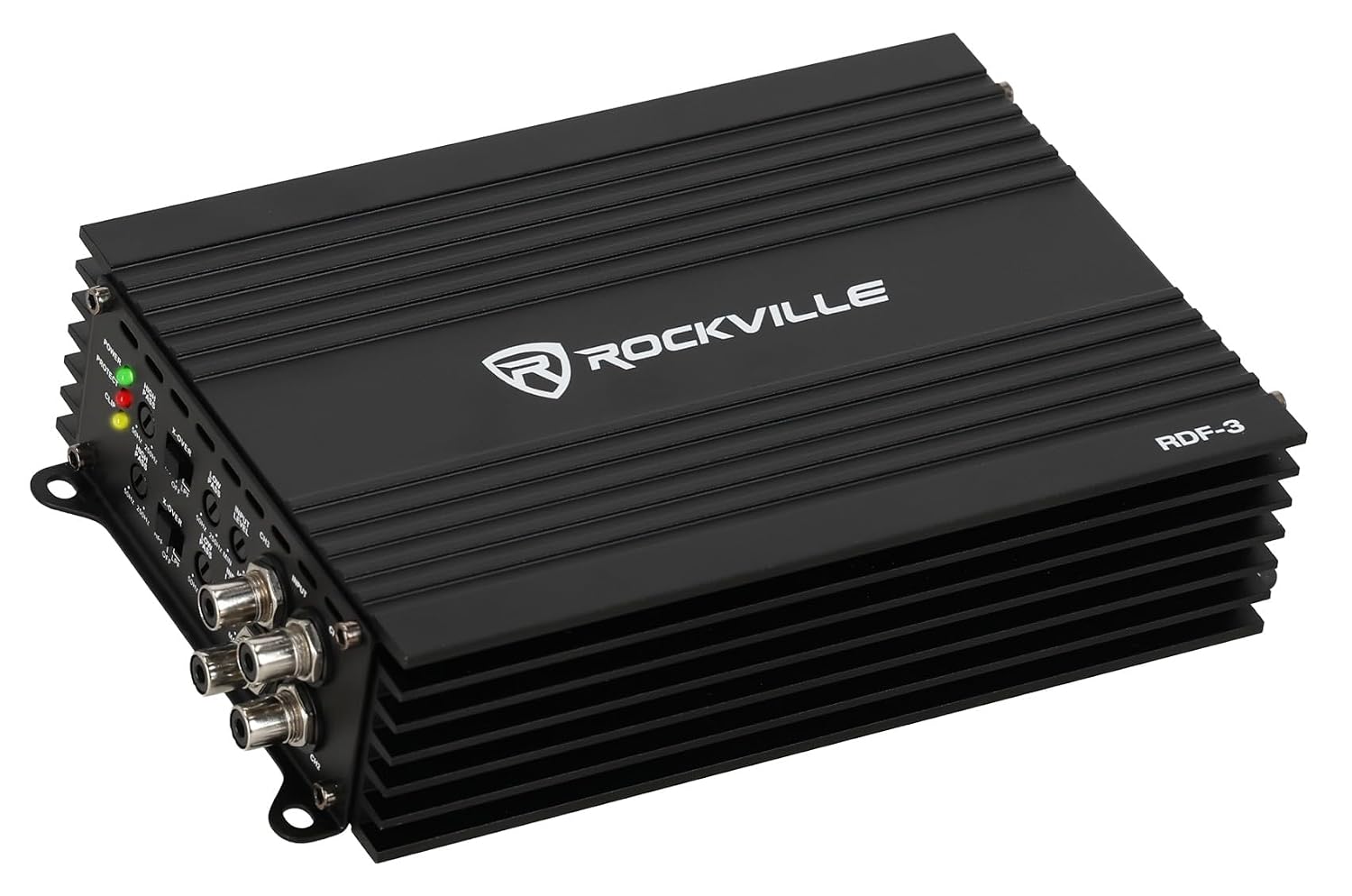

The Rockville RDF is a compact 4-channel Class D car amplifier designed for automotive audio systems that require flexible power configurations without taking up excessive installation space. It delivers 1600W peak / 400W RMS total power and measures just 8.25 x 4.92 x 1.81".Dyno-certified RMS output includes 100W x 4 at 2 Ohm, 60W x 4 at 4 Ohm, or 200W x 2 bridged at 4 Ohm at 14.4 VDC. The 86% efficient Class D design reduces wasted electrical power, helping limit unnecessary strain on the vehicle battery.System tuning options include:Adjustable 50Hz-250Hz low-pass crossover Adjustable 50Hz-250Hz high-pass crossover Full-range operation 4Hz-45kHz frequency response 0.2-6.05 Vrms input sensitivityTiffany-style RCA inputs provide signal connections, while 4 AWG power and ground terminals and 10 AWG speaker outputs support car audio installation. Power, status, and clip LEDs provide operating information.The package includes the RDF amplifier, owner's manual, mounting screws, Allen keys, spare fuses, and video training card.
