SEBSON Mini Indoor Motion Detector, Flush-Mounted Ceiling Mounting, Programmable, Infrared Sensor Range 6 m / 360°, Suitable for LED, 3-Wire
Product Information
About

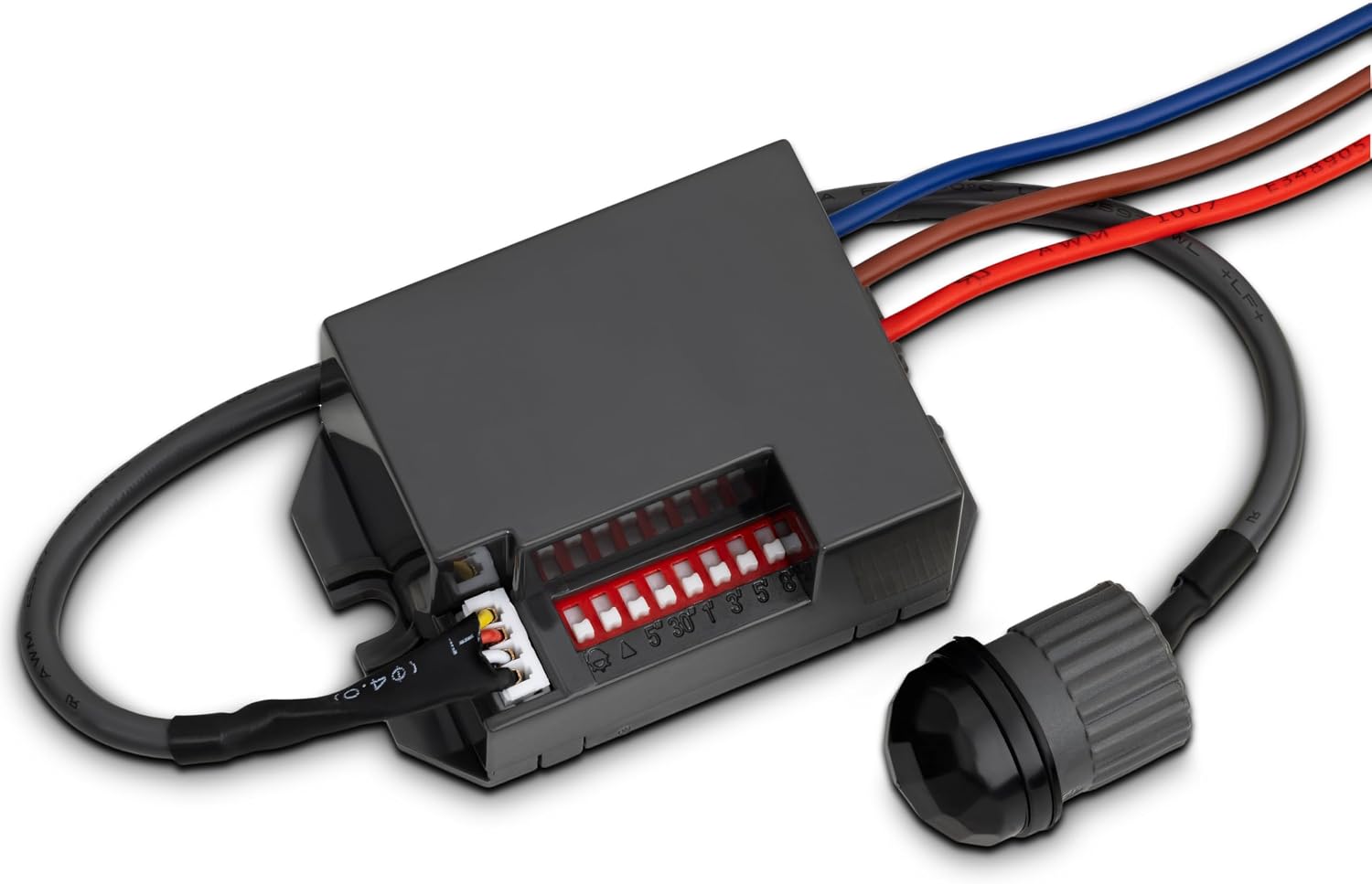

SEBSON Mini motion detector for indoor use, dimensions switch 56 x 37 x 26 mm and sensor diameter 18 x 25 mm.
The motion sensor has a maximum power consumption of 800 W for incandescent lamps and 200 W for LED lamps or other energy-saving bulbs.
The detection range of this small infrared sensor is 6 m with a radius of 360° and detection angle of 120°.
The duty cycle is programmable, after preset periods (5 sec, 30 sec, 1 min, 3 min 5 min or 8 min).
Even according to the ambient brightness (10 LUX or 2,000 LUX) the grey installation motion sensor can be adjusted.
Product Description
Mini built-in IR motion detector The infrared sensor detects movements of people, large animals and vehicles in a detection range of up to 6 m with a radius of 360° and detection angle of 120° (on open surface) and turns on the connected lighting. The built-in motion sensor with infrared sensor is suitable for LED. The maximum power consumption is 200 W with LED lighting. Programmable Operating time: After adjustable time periods (5 sec, 30 sec, 1 min, 3 min 5 min or 8 min), the motion sensor switches off again. Ambient brightness: With the help of a controller, the switch-on sensitivity of this device can be set to 10 lux (night) or 2000 lux (day). Where can I use the motion detector? Thanks to the flat design of the switching unit with a height of only 26 mm, this motion sensor is particularly suitable for cavity ceilings or other places where space is limited. With its small size with only 18 mm diameter, the sensor can be placed discreetly in the desired place. Product features: Operating voltage: 220-240V AC 50/60Hz. Installation: 3-wire Max. Power consumption: max. 800 W for incandescent lamps, max. 200 W for energy-saving bulbs. Power consumption at standby: 0.5 W. Detection speed: 0.6 - 1.5 m/s. Detection range: max. 6 m (<24°C)/360°. Max. 6 m (<24°C)/120°. Ambient brightness: 10/2,000LUX Protection class: IP20. Switch-off delay: 5 or 30 seconds, 1, 3, 5 or 8 minutes. Ambient temperature: -20 °C to +40 °C. Humidity: <93%. Switch dimensions: 56 x 37 x 26 mm. Sensor dimensions: diameter 18 x 25 mm. Installation hole sensor: 16 mm. Case material: plastic. Colour: anthracite. Package includes: 1 x SEBSON built-in IR motion sensor
