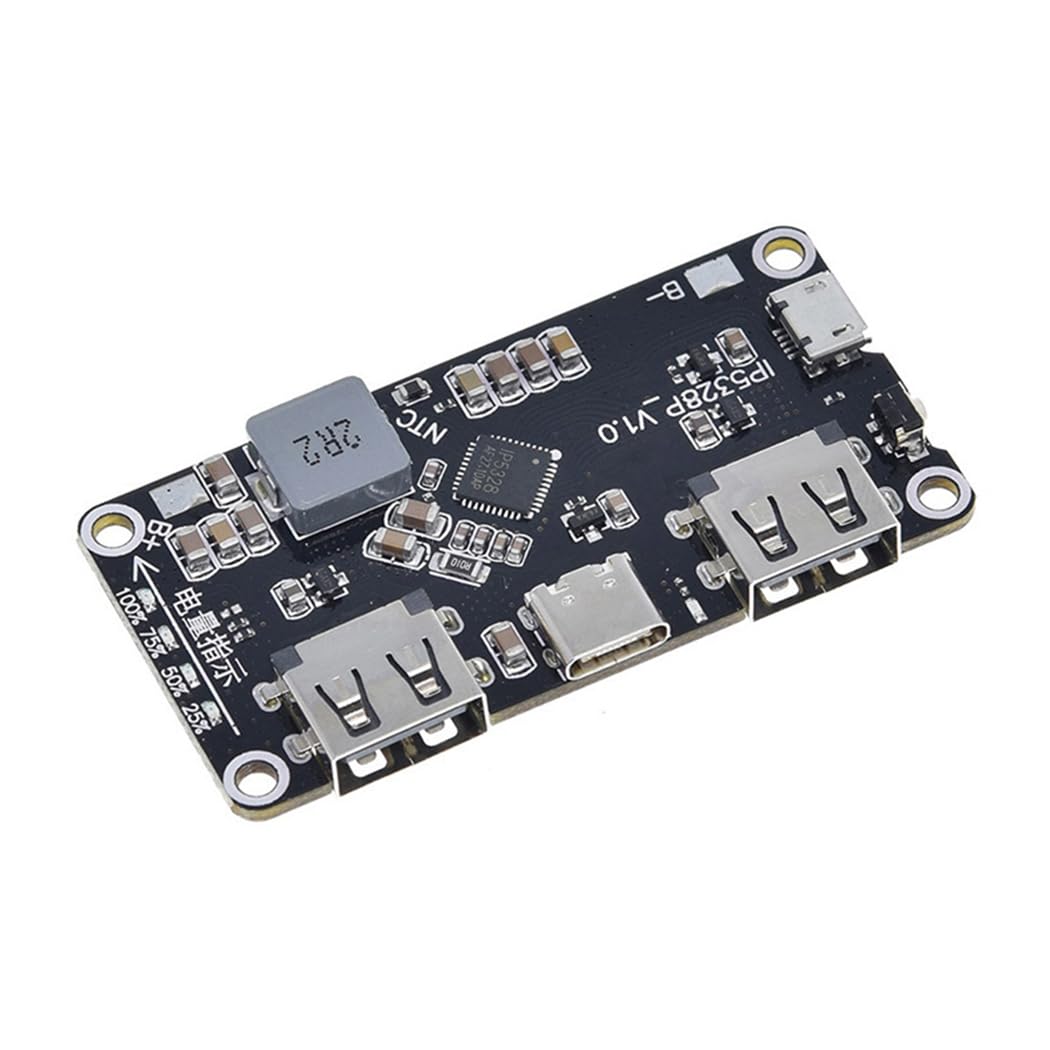

HiLetgo 2pcs IP5328P Dual USB Battery Fast Charge Module Bi-Directional 18W Fast Charging 3.7V to 5V 9V 12V Step Up Power Bank Board QC3.0 FCP AFC MET SFCP Quick Charge Type-C

Product Description

Description: IP5328P has a constant current, constant voltage lithium battery charging management system that supports a synchronous switch structure. Can automatically match different charging power pressure specifications.When the battery voltage is less than 3V, use 250mA trickle charging; when the battery voltage is greater than 3V, enter the input constant current charging. IP5328P can automatically adjust the charging current to adapt to different load capacity adapters. IP5328P does not support the same charge and discharge, and the output discharge port will be closed in the charging state to prevent the input high voltage from damaging the charged device. IP5328P integrates a synchronous switching converter system that supports high voltage output, supports a wide voltage range output of 5V~12V. The load capacity is 5V-3.1A, 7V-2.4A, 9V-2.0A, 12V-1.5A. In order to prevent failure caused by excessive inrush current at startup, it was integrated output over current, short circuit, over voltage, over temperature and other protection functions. The output current of the boost system can be automatically adjusted with the temperature to ensure that the IC temperature is below the set temperature. Package included: 2 x IP5328P Dual USB Battery Fast Charge Modules
