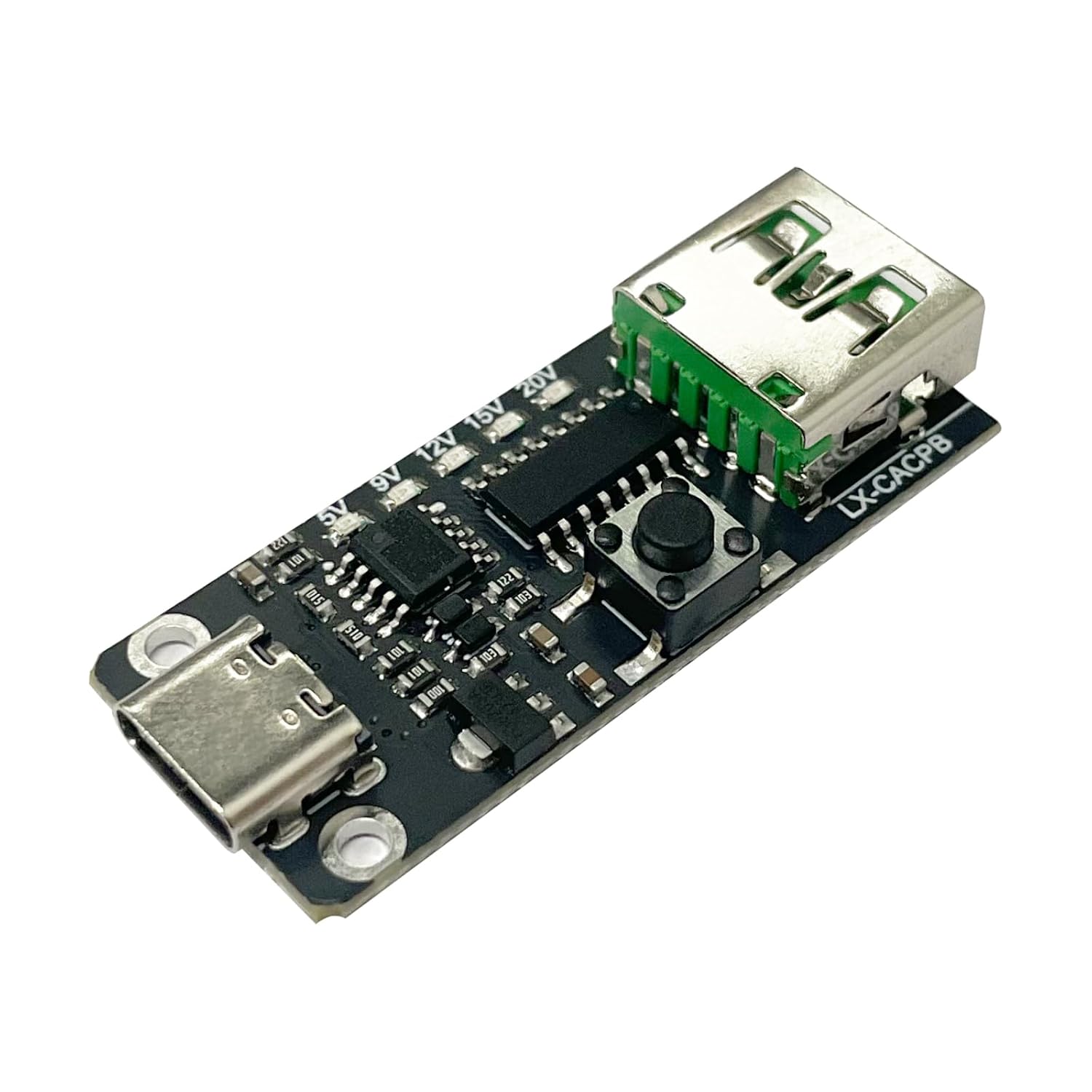

2PCS USB-C 5A PD Trigger Board, Type-C Female Input Fast Charge Type-C to 5V 9V 12V 15V 20V USB-A Port Output, PD/QC Decoy Board Adjustable Voltage Power Trigger Module

About this item

• 100W 5A USB-C Fast Charge Trigger Board Module PD/QC Decoy Board Fast Charge USB Type-c PD 2.0 3.0 Power Delivery Boost Module. Maximum 20V5A output (actual value depends on your power supply).
• PD ONLY short circuit contact: After short circuit, the module only supports the PD protocol. DM and DP short circuiting contacts: After short circuiting, DM and DP can be input from USB. Unless needed, short circuiting is not recommended. NOTE: Do not attempt to short-circuit if you are not a professional.
• Advanced Testing Features: Includes auto-polling to the highest voltage, infinite cycling, adjustable jump time, and more—perfect for aging tests and lab use. LED indication output.Parameter braking is saved, and the last deception setting is executed when powered on again.
• USB-C PD Trigger Board Module PD/QC Decoy Board Fast Charge USB Type-c to DC 5V 9V 12V 15V 20V High Speed Charger Power Delivery Boost Module Adjustable Voltage Power Trigger Module
• This USB-C PD trigger module supports PD3.0, PD2.0, QC, FCP, AFC voltage deception output, mode free switching, or can be set to only support PD, this module is compact, durable, and easy to install.
