JMT PCIe 4.0 X16 to Oculink SFF-8612 eGPU Graphics Card Docking Station 64GB/s External GPU Enclosure Support Small 1U / Flex Power Supply (Acrylic,AC7 38 * 35 * 14cm)

Product Description

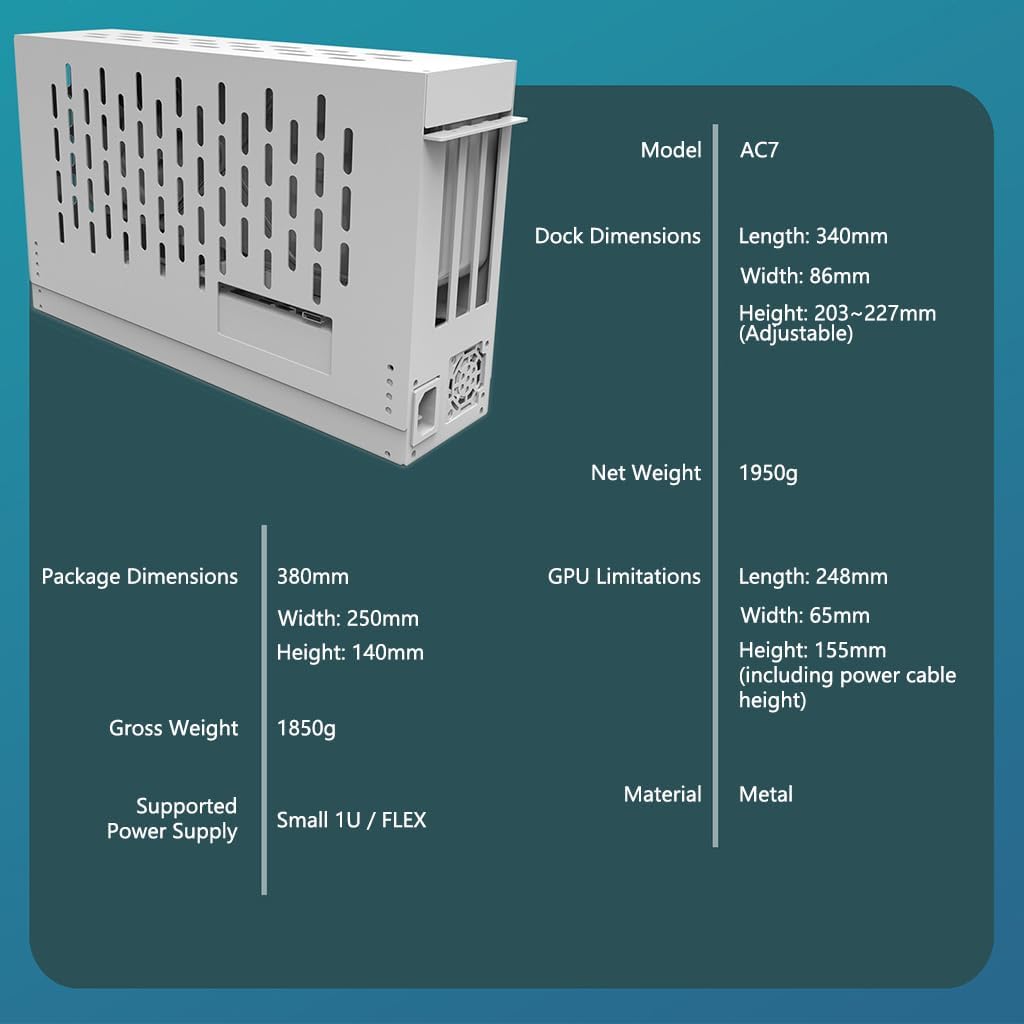

JMT PCIe 4.0 X16 to Oculink SFF-8612 eGPU Graphics Card Docking Station 64GB/s External GPU Enclosure Support Small 1U / FLEX Power Supply Product Specifications Graphics Card Dock Dimensions: AC6: 251mm (L)×86mm (W) × 203mm (H) = 4.3L (4.3 cubic decimeters) AC7: 340mm (L)×86mm (W) × 203mm (H) = 5.9L (5.9 cubic decimeters) Net Weight and Gross Weight: AC6: Net weight 1550g, Gross weight 1850g AC7: Net weight 1950g, Gross weight 2300g Packaging Dimensions: AC6: Length 29 cm, Width 25 cm, Height 14 cm AC7: Length 38 cm, Width 35 cm, Height 14 cm Graphics Card Slots: AC6: Three slots thickness limit 60 mm, length limit 248 mm, no height limit AC7: Three slots thickness limit 60 mm, length limit 336 mm, no height limit Materials: 1mm and 1.5mm thick galvanized steel (SGCC), 3mm thick acrylic (AC7Y). Manufacturing Process: Sheet metal bending, spray painting and baking, acrylic thermoforming. Backplate: Built-in OCULINK backplate, includes a 50cm OCULINK cable. Fan Mounts: None. Power Supply Mount: Requires a separate FLEX (small 1U) power supply, 150mm x 81.5mm x 40mm. Graphics Card Bay Features: Compact design with FLEX power supply mounted at the bottom; supports graphics cards or other PCIe cards up to 248mm/336mm in length; 4-step adjustable housing height to accommodate graphics cards of varying heights; large, all-around ventilation openings; supports simultaneous start/stop. Oculink 64G high-speed data transfer; does not support hot-swapping.
